Container lashing points

- Min. breaking loads tension 500 / shear 420 kN - Approval from any classification society - Standard height 110 mm - Topplate with punchmarks for easy installation - Standard distances for double foundations 203/216/528 mm - Weldable ...

... fitting which gets welded in to the deck of a vessel. They are used in combination with a breech base twist lock B-22 to lock containers on the deck. It also accepts the LE-12 Breech base D-ring to secure your cargo.

... designed to move in the foundation to allow shifting between the hatch cover and the side stanchions where the container rests. The container in this way does not get damaged during the voyage.

The CONTECH® reinforced convex lashing point FR-6B gets welded on the deck of the vessel. They are mostly used in combination with a lashing chain, webbing, speed king or turnbuckle to ...

... the vessel. They are used in combination with the breech base bottom twist lock B-22 to lock the corner castings of the container. The twist lock gets locked into the socket/fitting with a turning movement. It also accepts ...

Application: Boat Standard: GB, ISO Customized: Customized Surface Treatment: Shop Primer Material: Steel Type: Lashing Breaking Load Tension: 500 KN Breaking Load Shear: 420 KN Breaking Load Compression: 2000 KN

Decksockets can be welded on the deck of a vessel and are available in different versions: flush, raised, dovetail and breech base. The flush and raised decksockets have an ISO-hole to insert the cone of a manual twistlock. The dovetail ...

Decksockets can be welded on the deck of a vessel and are available in different versions: flush, raised, dovetail and breech base. The flush and raised decksockets have an ISO-hole to insert the cone of a manual twistlock. The dovetail ...

Decksockets can be welded on the deck of a vessel and are available in different versions: flush, raised, dovetail and breech base. The flush and raised decksockets have an ISO-hole to insert the cone of a manual twistlock. The dovetail ...

Decksockets can be welded on the deck of a vessel and are available in different versions: flush, raised, dovetail and breech base. The flush and raised decksockets have an ISO-hole to insert the cone of a manual twistlock. The dovetail ...

Decksockets can be welded on the deck of a vessel and are available in different versions: flush, raised, dovetail and breech base. The flush and raised decksockets have an ISO-hole to insert the cone of a manual twistlock. The dovetail ...

Weldable raised ISO socket single type To be used for container stacking as a counterpart of several types of twistlocks (wide body manual, turnfoot, semiautomatic) turnfoot Dring and others. Standard height 110mm, other ...

Weldable raised ISO socket double type, longitudinal To be used for container stacking as a counterpart of several types of twistlocks (wide body manual, turnfoot, semiautomatic) turnfoot Dring and others. Standard height ...

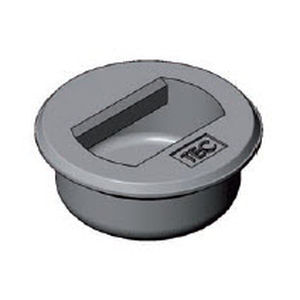

Weldable socket to be used with twistlocks, turnfoot D-rings for container lashing. Socket is welded to deck and the pot secures watertightness. Single type. Material: Weldable steel Weight: 7kg SWL: ...
