Working load: 9,177 kg
Chain diameter: 28 mm
Anchoring speed: 9,000 mm/min

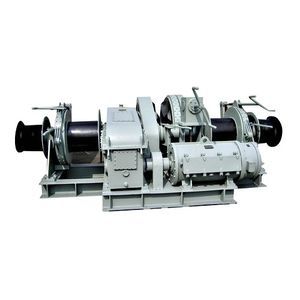

This marine anchor windlass, available with either a double or single gypsy, is powered by a diesel engine. There are two primary drive configurations. Type 1 utilizes the engine to drive the windlass ...
Zhongyuan Ship Machinery Manufacture (Group) Co.,
Working load: 1,203 kg
Maximum pull: 5,099 kg
Chain diameter: 13 mm

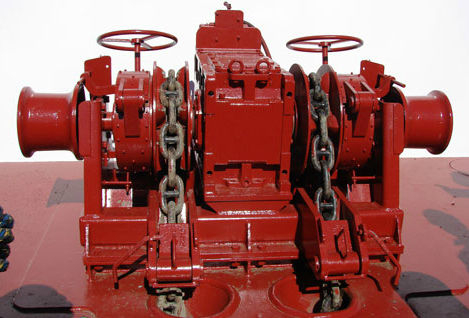

Our boat hydraulic anchor windlass, with a diameter ranging from 12.5mm to 28mm, is specially designed as anchoring equipment for work boats, barges, small ships, and inland waterway vessels. Our small ...
Zhongyuan Ship Machinery Manufacture (Group) Co.,
Working load: 510 kg - 25,493 kg
Chain diameter: 13 mm - 142 mm
Anchoring speed: 9,000 mm/min - 18,000 mm/min

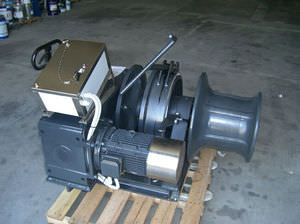

The single gypsy horizontal anchor windlass is engineered to meet class requirements spanning anchor chain sizes from 12.5mm to 142mm. Our 50mm windlass features a single gypsy, single drum and warping ...
Zhongyuan Ship Machinery Manufacture (Group) Co.,
Working load: 1 t - 50 t
Chain diameter: 12 mm - 81 mm
... windlasses for all types and tonnages of vessels. Although their primary use is aboard ship, their application for onshore or permanent installations is limitless. Anchor windlass winches have pull capacity ...
Working load: 1 t - 50 t
Chain diameter: 12 mm - 81 mm
YMV offers wide range of anchor windlass winches for all types and tonnages of vessels. Although their primary use is aboard ship, their application for onshore or permanent installations is limitless. ...
Working load: 3,200, 3,700, 3,400 kg
Maximum pull: 4,300 kg
Engine power: 9,200, 7,500 W
White painted horizontal axis winch. The CAESAR can use chains from 14 mm to 24 mm with stud link in diameter. With different drives and recommended for boats up to 70 m. Available versions: -1 gypsy - 1 horizontal drum -1 gypsy - ...
Working load: 3,600, 4,400 kg
Engine power: 9,200, 11,000 W
Power supply: 400, 230 V
... horizontal axis windlass. The NH-24 can use chains up to from 24mm with stud link. With different drives and recommended for boats up to 80 meters Available in different drum and gypsy configurations. For the version see ...
Working load: 677 kg - 11,719 kg
Engine power: 1 kW - 30 kW
Power supply: 380, 220 V
Anchor windlass of GMB-N type doesn't have the remote anchor recoil. The windlass of this type could be customized for power, working load, anchor chain grade, warping head, and other parameters under ...
Working load: 677 kg - 11,719 kg
Engine power: 1 kW - 30 kW
Power supply: 220, 230 V
Anchor windlass of GMB-ND type has the remote anchor recoil (starboard). Drivern mode: electric Anchor chain diameter: 12,5-81mm The windlass of this type could be customized for power, working load, ...
Working load: 1,000 kg
Many products in our standard range have full Type Approval by societies such as Lloyds, DNV, ABS or Bureau Veritas. Units can be supplied as stand alone single chain gypsy or a combination of chain gypsies, mooring drums and warping ...
... sizes, along with options like manual and hydraulic brakes, jaw clutches, gypsy heads and chain stoppers. Combination winch/windlass units are also available. Single Wildcat Several Chain Sizes Available ...
Vertical Anchor Windlass: Model AVAW Features: - Electric or hydraulic power - Variety of control options - Failsafe drive train braking system - AISI 316 stainless fasteners (3/4” dia. & smaller) - Zinc-plated ...
Working load: 10,350, 7,400 lb
Coastal Marine Equipment W100 Anchor Windlass Series is designed for 1" diameter stud link chain. Available in single, double, horizontal, vertical or winch/windlass combination units.
Coastal Marine Equipment Inc
Working load: 5,500 kg
This series of windlasses has been aspecially designed for intensive use and therefore has a robust construction. The band brakes are lined with a ferrodo (non-asbestos) friction material. Standard features Heavy duty worm gearbox ...
Emce Winches
Working load: 1 kg
Windlass with horizontal axis for chain with diameter from 22 to 120 mm. Windlass with vertical axis for chain with diameter from 22 to 56 mm. Windlass can be: - single or double ...
C.M.T
A ships windlass is a mechanical device powered by an electric, hydraulic or diesel motor. It has one or two wildcats, or chainwheels, the notched wheel that holds the anchor chain. Some have drums, or warping heads for mooring or anchor lines. Those offered on NauticExpo are intended for use on commercial ships rather than recreational vessels.
ApplicationsSuch devices are suitable for use aboard all commercial ships and work boats. Models exist for all chain diameters.
TechnologiesThe motor driving the wildcat can be electric, hydraulic or diesel. The vessel's anchor chains must fit perfectly within the wildcat's notches. A windlass may have one or two wildcats, or chainwheels, and one or two drums, or warping heads for taking up and tensioning lines and cables. The wildcat axis can be horizontal or vertical, the latter usually called a capstan rather than a windlass.
How to chooseChoice of a vertical or horizontal axis will depend on the anchor chain's path between the hawse hole and the chain locker, and available space on and below the deck. Other factors include anchor chain diameter, the vessel's laden and unladen displacement and the number of anchors and lines.
Windlasses aboard ships subject to the terms of maritime conventions or the regulations of classification organizations must meet certain standards and be certified.
