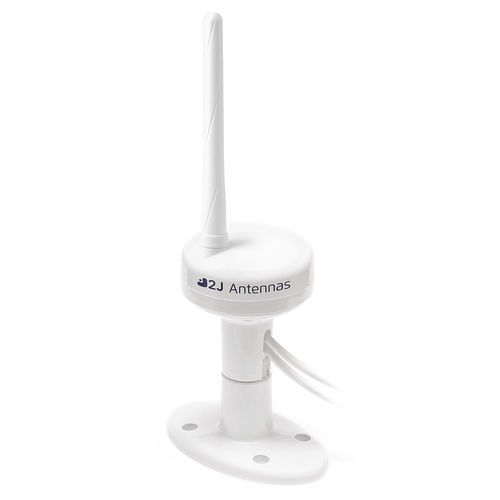

GPS antenna 2J9637JBWGF-B12JWa-B10BWAISfor boatsvertical
Add to favorites
Compare this product
Characteristics
- Network
- GPS, AIS
- Application domain
- for boats
- Type
- vertical
- Protection level
- IP67
- Frequency range
Max.: 1,610 MHz
Min.: 162 MHz
- Gain
23 dB, 24 dB
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)- Height
248 mm
(10 in)- Length
110 mm
(4 in)- Depth
74 mm
(3 in)
Description
2-in-1 Combination Antenna
AIS - Automatic Identification System Antenna
Compact Marine antenna
Ground Plane Independent
Active GNSS Antenna
24 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Configurable Mount options
Adhesive Mounting sticker included
Customizable Cable and Connector
Catalogs
2J9637JBWGF-B12JWa-B10BW
9 Pages
