Boat NMEA 2000® connector A2K-FFC

Boat NMEA 2000® connector - A2K-FFC - Actisense
Boat NMEA 2000® connector - A2K-FFC - Actisense
Add to favorites
Compare this product


Description

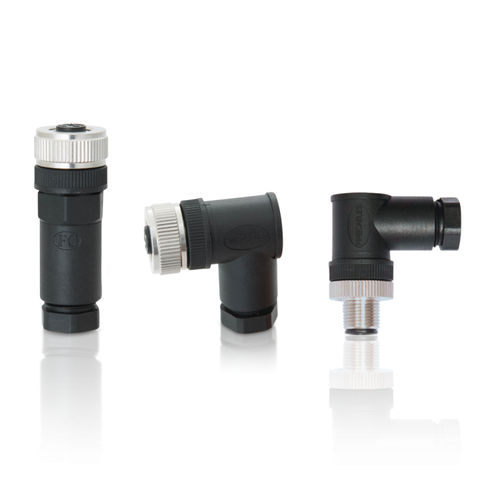

Field fit connectors allow full customisation of your NMEA 2000 network cabling. Male and female variants, as well as right angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customised. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity. The Field Fit Connectors allow cables to be cut to any length resulting in less excess. Right angled options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge. STRAIGHT MALE Electrical Rated Current - 4A Rated Voltage 60VDC Mechanical Connector Contact - Brass, gold plated Wire Gauge/Size - 22 AWG/0.34mm Contact Resistance - ≤ 5 mΩ Contact Polarisation - Standard M12 -“A”- polarisation Mating Thread - M12 Connector Screw - Stainless Steel Sealing Gland Size - PG9/6-8mm Cable O-Ring Seal - Rubber, black Connector Insert - TPU Connector Body - PA+GF, black Insulation Resistance - ≥ 100 MΩ Weight 21.1g Approvals and Certifications Protection - IP67 (in locked condition) Ambient Temperature - -25°C to +90°C NMEA 2000 Approved RoHS Compliant IEC 61076-2-101 Compliant
