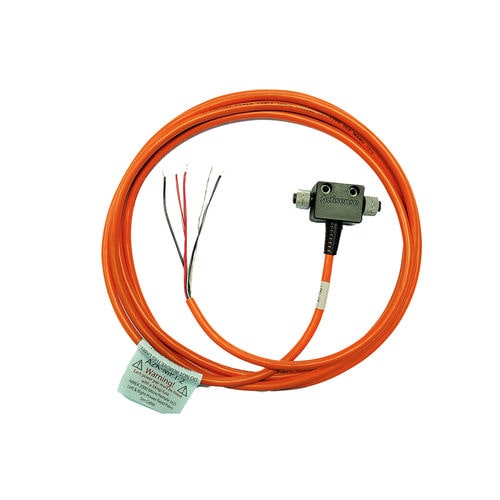

NMEA 2000® cable A2K-MPT-2

for boatsNMEA 2000® network

The A2K-MPT-2 is a simple, safe and efficient method of powering an NMEA 2000 network. NOW WITH IMPROVED STRAIN RELIEF! The Micro Power T can easily provide power to the NMEA 2000 bus with micro fit connectors to enable ‘plug and play’ connectivity. The Actisense designed connectors are quality engineered and shaped to allow easy and secure connections, using our specialist interconnect and NMEA knowledge. With its two female connectors, this power T is also fully Devicenet compatible. The Actisense specified cable is UL certified, the three-metre cable length ensures that the A2K-MPT-2 offers complete flexibility when installing. Electrical Rated Current - 4A (each feed) Rated Voltage 60VDC Mechanical Female Contact - Phosphor bronze, gold plated Contact Carrier - PA66 (30% Glass Filled), Black Contact Polarisation - Standard M12 -“A”- polarisation Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Cable Jacket Material - 0.8mm Nom. PVC, orange Cable Outer Diameter - 6.7mm ±0.254mm Cable Length - 3M Wire Length - 100mm (7mm stripped) Wire Jacket - PVC Wires - 18 AWG (stripped and tinned) Drain - 18 AWG (34 strand tinned copper) Shield - Al-mylar Weight 290g Approvals and Certifications NMEA 2000 Approved RoHS Compliant UL Certified Cable (E137250) Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C
