Data multiplexer PRO-NDC-1E2K

NMEA

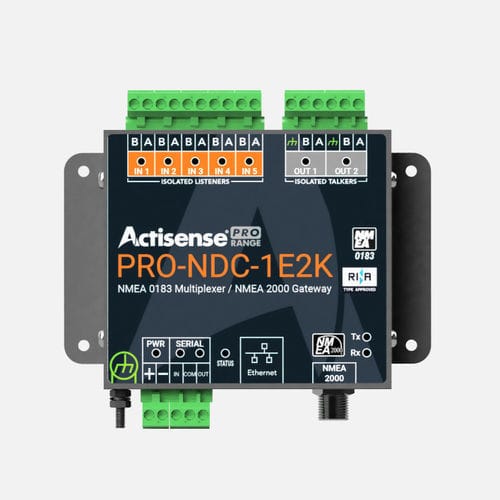

PRO-NDC-1E2K Intelligent Type Approved NMEA 0183 Multiplexer / NMEA 2000 Gateway The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer… Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering. Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2K; Auto-switching between inputs to allow for a primary, secondary, tertiary priority input. Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer. Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption. Easy to configure using the web based UI, no need to manually enter and edit strings of text. RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations. Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly. Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network. Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment. NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems. NMEA 2000 data streaming over Ethernet. 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
