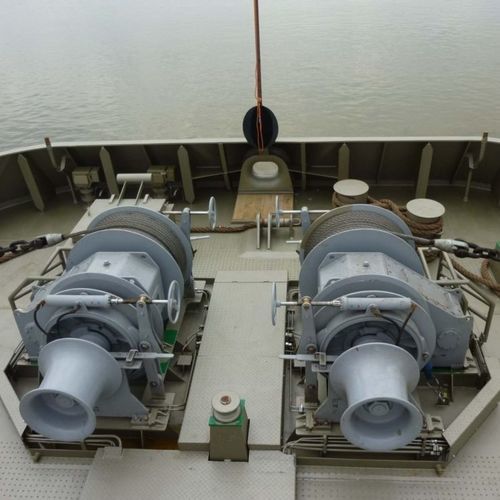

Ship winch

anchormooringhydraulic drive

Adria Winch produces many types of cable lifter units and combined anchor/mooring winches, depending on specifications. The compact design of AW anchor/mooring winches, combined with an integrated cable lifter makes it easier to pay out and haul the anchor, or to moor a ship. It’s fully sealed transmission housing allows maximum operating safety while oil-bath inside housing ensures long life of gear wheels and low maintenance of equipment in general. Winches are built with steel frames and gearboxes either metalized or finished with marine grade coatings for corrosion resistance. Gears and shafts are made from high quality cast alloy steel for strenght and durability in the harshest conditions. All winches can be electrically or hydraulically driven Features : Chain dimensions from 11 to 81 mm, pull up to 350 kN Arrangements according to customers requirements High torque and high rope speed Speed control by pole-changing AC electric motor or step-less speed by frequency inverter High pressure hydraulic drive High brake holding power with stainless steel bolts and bushings in all movable parts Options : Hydraulically operated clutches Hydraulically operated fail safe brakes Stainless steel brake rim Local/Bridge control Remote automatic anchor drop / PLC controled chain speed (1÷3 m/s) Automatic mooring control system with electronic load sensing
