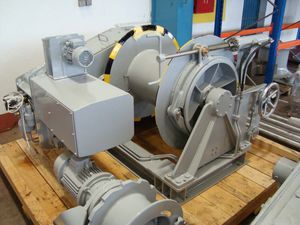

Ship capstan

hydraulic

AW’s range of anchor warping capstans for anchor chains with diameters ranging from 11 to 56 mm as well as combined anchor-warping capstans and simplified anchor-only design. All capstans can be electrically and hydraulically driven. The same applies to our standard warping capstan without lifter part which are also fitted vertically on the deck. Warping capstans can also be specially designed so that the drive motor is contained in the warping head if there is space restriction below deck. On request, anchor-warping capstans can be fitted with remote-controlled cable lifter brake systems for automatic anchor release of and with additional information about chain length and speed. Features : Chain dimensions from 11 to 56 mm, pull up to 250 kN High brake holding power with stainless steel bolts and bushings in all movable parts Capacities in accordance with all relevant class requirements Options : Hydraulically operated fail-safe brakes Stainless steel brake rim Local/Bridge control Remote automatic anchor drop / PLC controled chain speed (1÷3 m/s)
