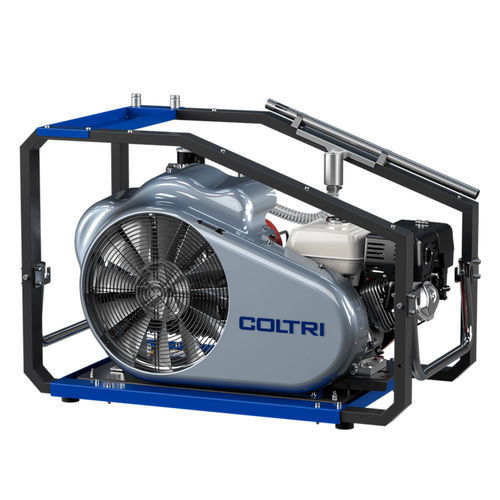

Maximum efficiency in motion.
Practical to transport, ERGO stands out for its sturdiness and great operational efficiency. It can be powered by Honda gasoline or Yanmar diesel engines. Equipped with monitoring panel complete with interstage pressure gauges, hitchhiking with adjustable pressure switch, automatic condensate drain and direction of rotation control.
3-stage high pressure pumping unit.
Monobloc in aluminum,
Crankshaft in forged steel
Splash lubrication
Forged aluminum connecting rods
Main roller bearings
Roller connecting rod bearings
1st and 2nd stage cylinders in aluminum with hard nicasil coating
2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating
3rd stage cylinder in special treated steel.
Stainless steel intake and exhaust valves
Interstage cooling pipes in stainless steel
Separator after the 2nd and 3rd stage
Safety valves after each stage
Maxifilter filter system
Oil level sensor
Purification system
The Maxifilter purification system enables reliable treatment of breathing air according to DIN EN 12021 when using original filter cartridges. Placed after the separator of the 2nd and 3rd compressor stages and before the pressure maintenance valve to create a first fundamental moisture barrier. The filtering capacity with inlet air at 20 ° C and 200 bar is 620m³.
Motor
One of the fundamental parts of the compressor: the motor transfers the motion to the pumping unit through the belt. The powerful 6.6 kW Honda GX 270 gasoline engine is available on this model.
