Dive compressor C-NITROX P320

nitroxscrewelectric

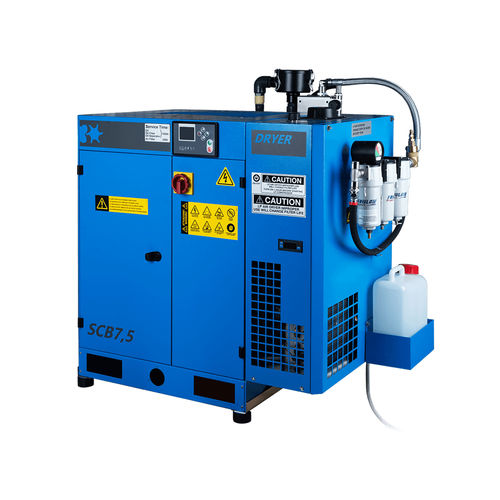

C-NITROX P320 C-NITROX P320 is a Heavy Duty industrial screw compressor that delivers air at a pressure of 10 bar to a Parker membrane that separates nitrogen and oxygen, up to a maximum percentage of 36 percent oxygen. The enriched air can be compressed to 232 bar in combination with a high pressure compressor. The percentage of oxygen obtained at the outlet can be adjusted up to 36 percent thanks to a valve accessible directly on the top of the compressor. The oxygen analyzer allows you to check the correct percentage, adjusting it through the appropriate valve. Standard equipment Electrical cabinet Automatic condensate drain 2 analyzers Thermostat 1 membrane % O2 36% High pressure compressor flow rate to be connected 315 l/min 18.9 m3/h 11.1 cfm Notes: operating pressure 232 bar / with the use of compressors with lower flow rates the maximum oxygen percentage is always guaranteed. Engine: Electric three-phase 400 V - 50 Hz Engine power: 7.5 kW - 10 Hp Charging rate: 1.070 l / min - 64.2 m3 / h - 37.7 CFM Working pressure: 10 bar - 145 PSI Net weight (approx.): 228 kg - 502 lb Dimensions (W x D x H): 101 x 75 x 123 cm - 39.7 x 29.5 x 48.4 in
