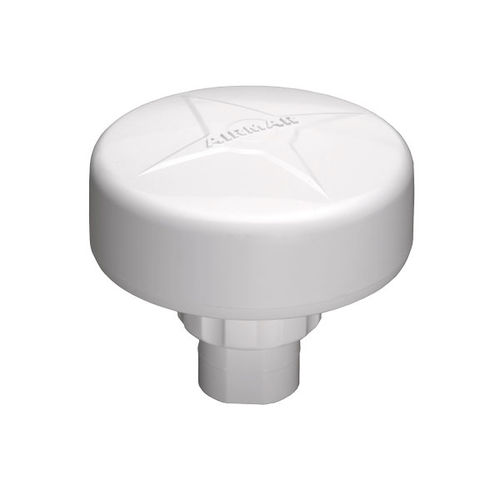

GPS antenna G2183

for boatsfor shipsfor yachts

The G2183 is a highly accurate GPS antenna—WAAS/EGNOS enabled. It is one of the first true 10 Hz GPS antennas made available. Scoring high in sensitivity, it delivers quick signal acquisition, reliable positioning, and accurate speed and course-over-ground readings. The G2183 can connect to both an NMEA 0183 device and an NMEA 2000® network, as the unit outputs both protocols simultaneously. And its compact size makes it easy to flush mount, pole mount, or rail mount. Rugged for all marine environments, the IPX6 waterproof housing can withstand virtually any condition Mother Nature throws at it. Features: WAAS/EGNOS GPS with 3 m (10') accuracy Up to 10 Hz rapid-position update rate—user selectable from 1 to 10 Hz Provides: latitude, longitude, COG, SOG, time and date, and magnetic variation data Outputs NMEA 0183 and NMEA 2000 data simultaneously IPX6 waterproof housing Available as a combination GPS and heading sensor model GH2183 Specifications: Weight: 127 g (4.5 oz.) GPS: - Satellites Tracked: 14-channel (maximum) - WAAS/EGNOS Satellites Tracked: any channel available - Satellites Acquired: 51-channel (maximum) - Position Accuracy: 3 m (10') with WAAS (95% of the time, SA off) - Fix Update Rate: Up to 10 times/s (user selectable) - Cold-start Acquisition: 60 s Temperature: - Operating Range: -30 to 55°C (-22 to 131°F) - Storage Range: -30 to 70°C (-22 to 158°F) Data-output Protocol: NMEA 0183 and NMEA 2000 data simultaneously Power: 780 mW - Supply Voltage: 9 to 40 VDC - Supply Current: <65 mA at 12 VDC - NMEA 2000 Load Equivalency Number (LEN): 2 Certifications and Standards: CE, IPX6, RoHS, IEC60945
