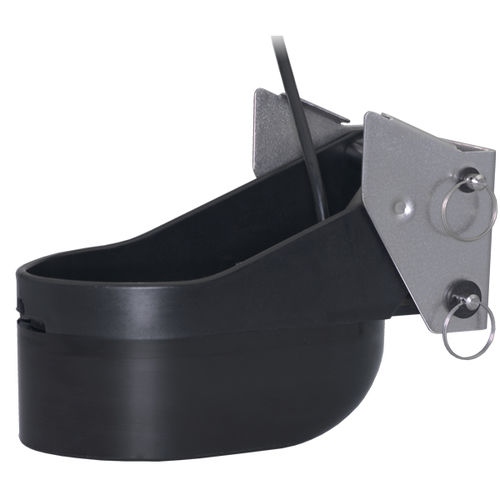

Depth transducer TM275LHW

water temperatureacousticfor boats

Get more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage. Features Depth and fast-response water-temperature sensor 1 kW for great deep-water performance from the low frequency Low frequency: 42 to 65 kHz 25° to 16° beam Maximum depth of 914 m (3,000') High frequency: 150 to 250 kHz 25° constant beamwidth Maximum depth of 914 m (3,000') 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper-water column Transom mount, urethane transducer Stainless steel, kick-up bracket locks in the “up” position and will not damage the transom Also available as a thru-hull (B275LHW) and pocket/keel (PM275LHW) mount Exclusive Xducer ID® technology
