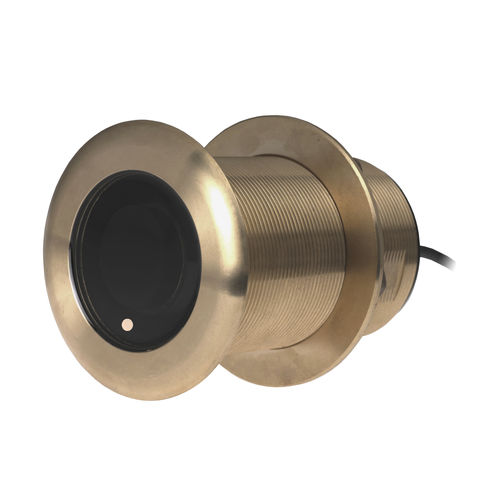

Depth transducer B75L

water temperatureacousticfor boats

Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band is the deep-water performer delivering excellent coverage and tracking. The B75L transducer delivers up to 35 kHz of total bandwidth in just one installation for tremendous deep-water performance. The B75L transmits across the following bandwidth: -Low frequency 40 to 75 kHz Tilted Element™ transducers have the ceramic element fixed at either a 12° or 0° angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. The B75L is available in two Tilted Element< models: -Fixed 12° tilted version for 8° to 24° hull deadrise -Fixed 0° tilted version for 0° to 7° hull deadrise Features: Depth and fast-response water-temperature sensor 300 W with maximum depth performance to 353 m (1,200') Low frequency: 40 to 75 kHz -32° to 21° beamwidth Great deep-water performance Low-profile, thru-hull housing provides good resolution at speed when installed properly Bronze housing for use on stepped, planing or displacement hulls Also available in a stainless steel housing (SS75L) for use with all hull materials Exclusive Xducer ID® technology Specifications: Weight: 1.4 kg (3 lb.) Recommended Boat Length: Up to 8 m (25') Hull Material: Fiberglass or wood Hull Deadrise: Up to 24° Acoustic Window: Urethane Hole Diameter: 70 mm (2-13/16") Transducer Element: One internal broadband ceramic assembly
