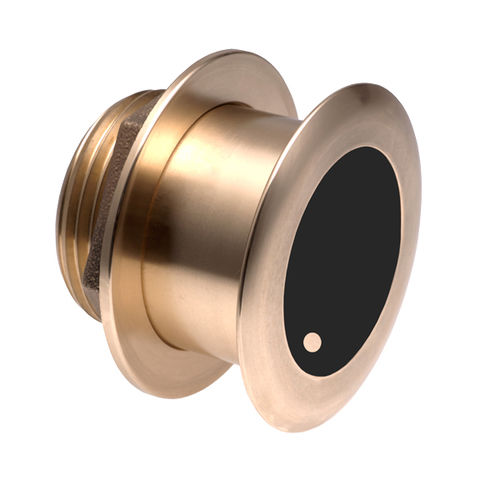

Depth transducer B175M

water temperatureacousticfor boats

Medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1,500') and delivers ultra-clear target resolution. B175M transmits across the following bandwidth: -Medium frequency 85 to 135 kHz Tilted Element™ transducers have the element fixed at a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer. The B175M is available in three Tilted Element models: -Fixed 20° tilted version for 16° to 24° hull deadrise -Fixed 12° tilted version for 8° to 15° hull deadrise -Fixed 0° tilted version for 0° to 7° hull deadrise Features: Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 457 m (1,500') Medium frequency: 85 to 135 kHz -16° to 11° beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation Bronze housing for use on stepped, planing or displacement hull Low-profile, thru-hull housing provides good resolution at speed when installed properly Also available in a stainless steel housing (SS175M) and a thru-hull (B285M), or in-hull (M135M) mount Exclusive Xducer ID® technology
