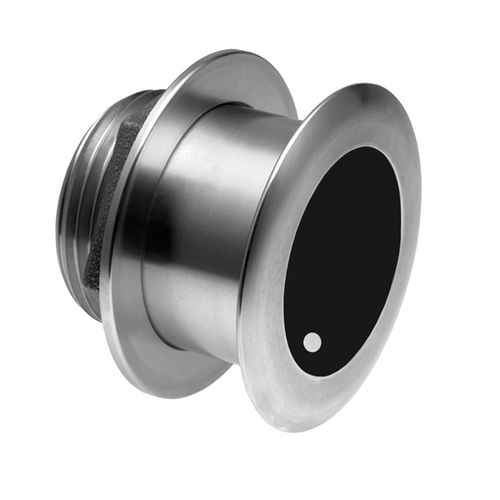

Depth transducer SS175L

water temperatureacousticfor boats

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The low-frequency band is the deep-water performer delivering excellent coverage and tracking. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation for tremendous deep-water performance. The SS175L transmits across the following bandwidth: Low frequency 40 to 60 kHz Tilted Element™ transducers have the ceramic element fixed at a 20°, 12° or 0° angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings. The SS175L is available in three Tilted Element models: Fixed 20° tilted version for 16° to 24° hull deadrise Fixed 12° tilted version for 8° to 15° hull deadrise Fixed 0° tilted version for 0° to 7° hull deadrise Features Depth and fast-response water-temperature sensor 1 kW with maximum depth to 762 m (2,500') Low frequency: 40 to 60 kHz 32° to 21° beamwidth Great deep-water performance Low-profile, thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hull Also available in a bronze housing (B175L) for use in a fiberglass or wood hull Exclusive Xducer ID® technology Specifications Weight: 2.7 kg (6 lb.) Recommended Boat Length: Up to 11 m (36') Hull Material: Compatible with all hull materials Hull Deadrise: Up to 24° Acoustic Window: Urethane Hole Diameter: Fiberglass or wood hull—95 mm or 3-3/4" Metal hull—105 mm or 4-1/8"
