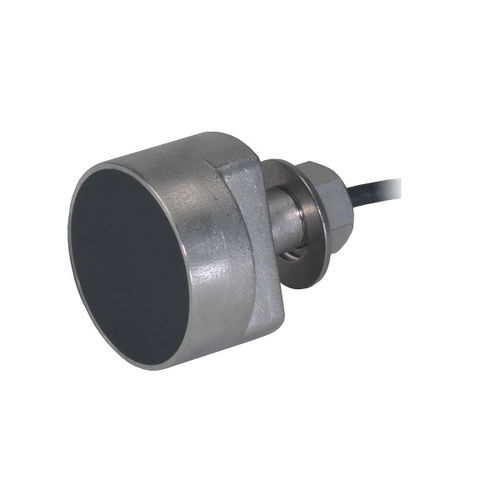

Depth transducer EchoRange™ 200 kHz Smart™

for boats

Airmar’s Smart™ sensors feature embedded microelectronics that process depth and temperature inside the sensor that can be instantly displayed on any device that accepts NMEA data. EchoRange technology transfers NMEA 0183 data in real time to a computer via the RS422 standard. In addition to the bi-directional NMEA 0183 interface, a secondary transmit only interface with a proprietary protocol using RS485 is available to OEMs. The user can obtain detailed echo envelope data which may be displayed as an analog waveform. The echo envelope is a 900-point time-series of the echo amplitude. By analyzing the shape of the echo envelope, information indicative of the seafloor type is revealed. Applications Bridge scour inspection systems Portable hydrographic survey Dredging Autonomous Surface Drones Hydrodrones Features Depth and temperature 200 kHz frequency Embedded transceivers Digital signal processing NMEA 0183* data-output User configurable, conserving bandwidth Control the depth range and the ping rate resolution, using the auto mode or manual setting capabilities Submersible down to 10M Housing design offers flexibility in types of mounting – Portable mount for pole installation – Transom-mount (with optional bracket) – Hull mount (either inside or external to hull) Featuring Airmar's Smart™ Sensor technology Specifications Transducer Weight: 1.3 kg (3 lb.) Varies depending on cable length Depth: Minimum Reading: 0.4 m (15"), limited in manual mode by pulse width Maximum Reading: 200 m (656'), limited in manual mode by ping rate Display Resolution: 10 mm (0.4") Water Temperature: Operating Range: -5 to 60°C (23 to 140°F) Storage Range: -30 to 70°C (-22 to 158°F)
