Passenger boat Passeur de La Rochelle

catamaranelectro solaremission-free

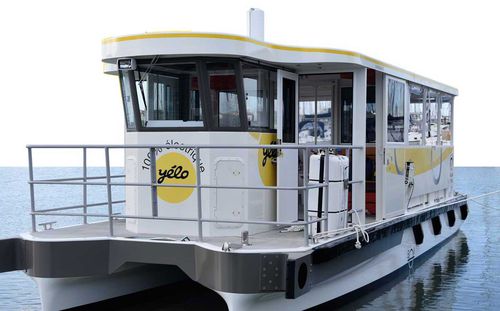

The first electric boat for public transport “Le passeur” (The ferryman) is the result of new and original specifications never gathered together until that time. In 1998, Alternatives Energies built a first electric boat for La Rochelle city harbour. It provides a shuttle service between the two sides of the old town harbour, where a 3 minutes trip allows a 45 minute walk to be saved. This small ferry has been such a success that a second unit has been launched in 2003 to face the increase of activity. Design and build following an innovative approach, “Le Passeur” currently operates yearly, seven days a week, from early in the morning till late in the evening, and even at night during summer. Name Passeur & Passeur 2 Location La Rochelle Energy & Propulsion 32x32 Ship Yard AltEn Design AltEn Owner cda lr Operator TEMAR Launch 1998 - 2003 Working time/ship 3000 hour/year Operating speed 4 knots Fleet trafic/year 250 000 passengers/an Structure Type Catamaran Hull and Deck Composites sandwich GFRP Cabin Alu-composite Platform #1 (30 to 50 passengers) Main particulars Length 10,00 m Width 3,5 m Light Weight 4,10 T Loaded Weight 6,50 T Draft 0,60 m to 0,90 m Free Board 0.5m Passengers area 28m2 Passengers Capacity 30 Passengers seats 30 Wheeling Chairs 2 to 4 Bikes 8 Crew 1 Safety Rules Bureau Véritas (BV) Passenger ships, 5th Category Engine and Energy Engine2 immersed lifting pods Power 2 x 10 kW GenSet Power- Batteries Technology Ni/Cd Batteries Capacity 20 kW/h Batteries Weight 660 kgs Full charge duration 2 h Supercharge 20 kVa(Fast charge) Solar Panels 9 m2 1,2 kWc Performance Maximun Speed 7 knots 13 km/h Giration Radius 3 m
