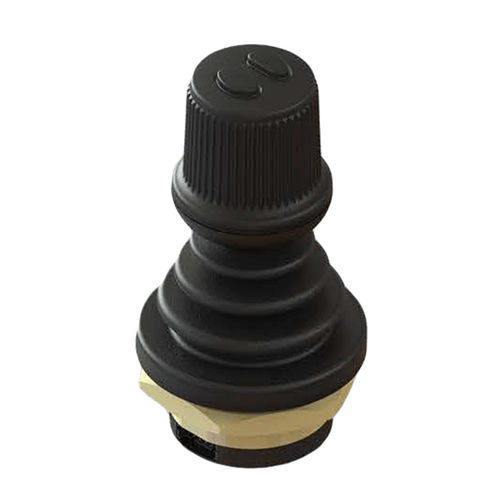

Multi-function joystick HE2

for boatsfor ships

Fully sealed and rugged version of the HE1 joystick, developed for harsh industrial environments with minimum IP67 grade About our HE2 finger joystick This is the rugged version of the HE1 finger-operated joystick, available in 1, 2 or 3 axis models. It is developed specifically for harsh environments and all configurations are tested for minimum IP67 grade. The HE2 mechanism is constructed from a robust stainless steel shaft on a brass gimbal, this enables the joystick to withstand very large input forces. Further protection from the elements is achieved by sealing all above panel parts, allowing the HE2 to resist all ingress of dust and submersion in 1m of water. This model is ideal for marine and offshore applications, chest packs, and other industrial applications that require a reliable high precision joystick that can resist the elements. The electrical output options are similar to the HE1, including analog voltage, USB HID 1.1 and cursor control. All necessary mounting hardware and electrical cables are always included in the package. Features Delivery within 2 weeks Suitable for harsh environments (all configurations are IP67 sealed) Robust stainless steel shaft and brass X/Y mechanism Elastomer overlay handle provides a soft touch feel with optionally integrated switches With contactless hall effect sensor technology Pre-programmed proportional analog output or USB Available in 1, 2 or 3 axis configurations Cable included with mating connector & pigtail wires Applications Marine and offshore control Mobile hydraulics Chest controllers Industrial vehicles Robot operations Crane operations Specifications Angle of movement ±20° (X,Y-axis) / ±45° (Z-axis)
