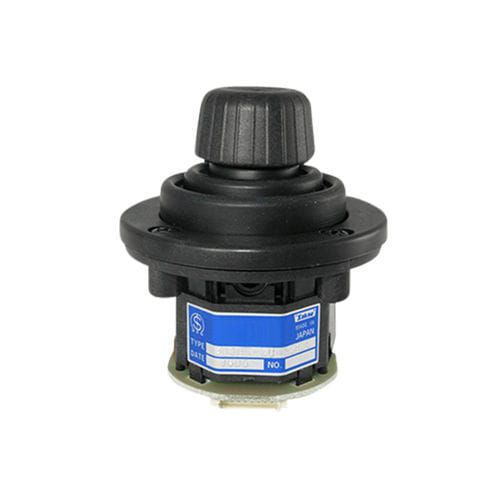

Multi-function joystick H30JH

for boatsfor ships

Low-cost version of 3-dimensional coordinate type joystick controllers with hall effect IC type resistive element About the Finger Joystick H30JH Low-cost version of 3-dimensional coordinate type joystick controller incorporated a hall effect IC type resistive element. It offers long life expectancy and high reliability. Features H30JH 3-dimensional coordinate type With a hall effect IC Protection IP40/IP54 Applications for H30JH Medical instruments Security camera operations Specifications Controlling range of operating lever X and Y directions: Approx.±15º from center position. Z direction: Approx. ±30º from center position. Operating force X and Y directions: Approx.1.5~3N (150~300gf) Z direction: Approx. 10~30mN•m (100~300gf.cm) Operating temperature range -20ºC~+60ºC Vibration 10~55Hz 98m/s² Shock 294m/s² Life expectancy Approx. 1.000.000 operations Mass Approx. 50g Hall effect IC type resistive element incorporated Applied voltage: 5V±10%D.C. Effective output: Approx. 0.5V~4.5V Electrical rotating angle: X and Y-axis: Approx. ±15º Z-axis: Approx. ±30º Independent linearity tolerance: ±3% Load resistance: over 10KΩ Dielectric strength 1 minute at 250VAC Insulation resistance Over 100MΩ at 250VDC EMC durability 50V/m (80Mhz~1GHz 1KHz sine-wave 80%AM modulation)
