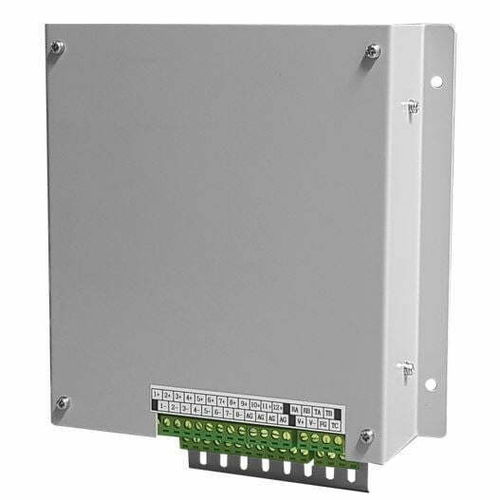

Signal converter INT-0057

analogNMEAfor ships

The INT-0057 is a 12 channel, 24bit Analog to NMEA Converter to convert voltages & currents to digital signals which is used in the marine industry. Example equipment includes Thrusters, Engine Telegraph, Shaft RPM and other standard Analogue data sources. The NMEA Converter utilises a high precision 24bit A/D converter with digital filtering for excellent noise rejection, high accuracy and high reliability. The INT-0057 outputs data through NMEA 0183 and TCP/IP-UDP (Ethernet) protocols simultaneously for interfacing with various ship’s equipment such as ECDIS, VDR, and RADAR. Benefits High precision 24bit A/D Converter with Digital filter for excellent noise rejection. Various input signals ranges for industry standard (0V~5V, ±5V, 0V~10V, ±10V, 4~20mA). High input impedance produces no input signal loss (More than 500k ohm). Supports both Single ended and Differential type input signal. Very High Common mode noise rejection (Large than DC 100V). Outputs a NMEA 0183 standard (XDR) and UDP (TCP/IP) datagram through 100BaseT Ethernet. Supports IEC 61162-450 mode (Optional).
