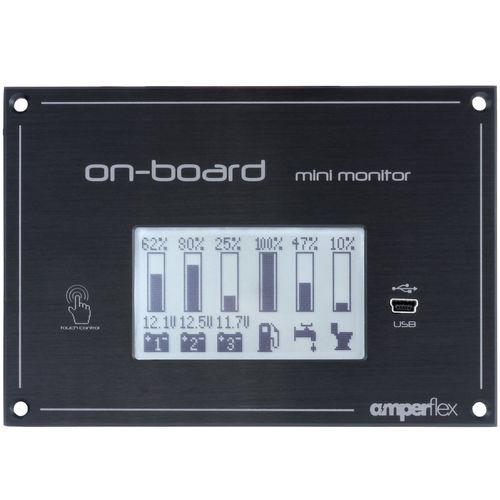

Boat monitoring panel On-board Mini Monitor

for yachtsfor batteryfor tank

On-board Mini Monitor OBM-0101 Battery and Tank Monitor - this is a modern and functional measurement panel, designed to monitor selected parameters on a sailing yacht, motor boat or camping vehicle. The monitor measures and displays working parameters of 6 batteries or/and 6 tanks. There is also possibility to monitor energy from solar panels or wind generators. Readout values are displayed conveniently on a clear LCD display, and the touch screen enables intuititive operation of the device. The menu is set up with icons for easy handling by an international crew. The device measures voltage and current for the individual batteries and uses those measurements to calculate energy consumption in time interval, battery capacity, average current in the last hour and 12 hours. It forecasts the remaining battery time for the current and average load. Average voltage, current and battery capacity values are stored in the device memory every 5 or 15 minutes. These stored values can be viewed on the screen in form of a timeline chart. The device uses a non-volatile memory with enough capacity to store the data for over 2 years. - monitors up to 6 batteries or/and 6 tanks - measures voltage, current and battery capacity - calculates the average current and forecast consumption - measures the amount of fluid in tanks and forecast empty or full - supports chargers aap.tron ACH Series - storage of parameters in non-volatile memory - mono LCD 2.8" with touch control - outputs for external devices and alarm signals - very low current consumption 4mA at 12VDC - digital communication with battery shunts and tanks
