CNC cutting table CZ-4228-D
for glassfor shipyards

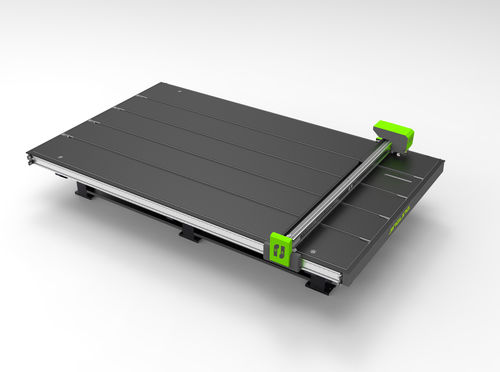

CNC cutting table - CZ-4228-D - Anhui Jingling Glass Machinery Co., Ltd. - for glass / for shipyards

CNC cutting table - CZ-4228-D - Anhui Jingling Glass Machinery Co., Ltd. - for glass / for shipyards - image - 2

Add to favorites

Compare this product

Characteristics

Type: CNC
Treated material: for glass
Application domain: for shipyards

Description

Main Technical Parameters of Maglev Glass Cutting Machine (1) Cutting parallelism: <0.1mm/M (2) Diagonal accuracy: <0.15mm/M 3. Cutting Bridge Speed: 200M/min (4) Belt conveying speed: 28M/min _Cutting head positioning accuracy error: +0.05-0.1mm Linear cutting accuracy: <0.1mm/M _Profile cutting accuracy: <0.2mm/M Acceleration: 1.2G (12m) _Maximum cutting size: 4200 mm *2800 mm Installation power of equipment: 20KW Main technical parameters of marking machine (1) Labeling period: 3 seconds/piece (2) Calibration function (optional): Increase 2 seconds/piece (3) Label paper size: 50mm x 40mm (4) Types of label printing: two-dimensional code, bar code, logo
