CNC cutting table JL-CNC
for glassfor shipyards

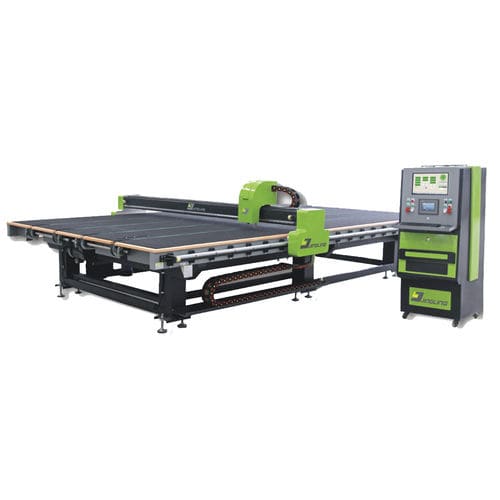

CNC cutting table - JL-CNC - Anhui Jingling Glass Machinery Co., Ltd. - for glass / for shipyards

CNC cutting table - JL-CNC - Anhui Jingling Glass Machinery Co., Ltd. - for glass / for shipyards - image - 2

Add to favorites

Compare this product

Characteristics

Type: CNC
Treated material: for glass
Application domain: for shipyards

Description

Main functional and technical parameters: (1) Cutting parallelism: <0.15mm/M (2) Diagonal accuracy: <0.2mm/M Cutting Bridge Speed: 180M/min (4) Belt conveying speed: 28M/min _Cutting head positioning accuracy error: +0.05-0.1mm Linear cutting accuracy: <0.15mm/M _Profile cutting accuracy: <0.2mm/M Maximum Cutting Size: 2500mm x 2000mm Installation power of equipment: 5.5KW Main functions and technical parameters of membrane removal: (1) Membrane removal rate: 0-60M/min (adjustable) (2) Revolving speed of membrane grinding wheel: 2000-4000R/MIN (adjustable) (3) Width of film removal grinding wheel: 20mm (4) Diameter of film removal grinding wheel: 150 mm Independent layer suction device: collecting LOW-E metal film dust Cylinder stroke: 30mm Minimum Machining Radius: 150 mm Power: Increase 1.5KW Controller: USING GALIL Six-Axis Controller
