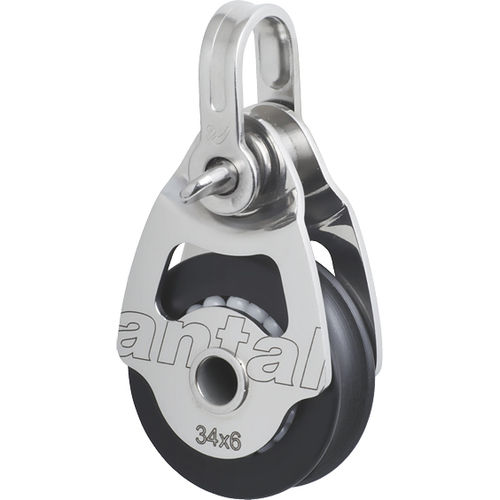

Single block 00301cam cleatwith swivelwith ball bearing
Add to favorites
Compare this product
Characteristics
- Number of sheaves
- single
- Type
- cam cleat
- Configuration
- with swivel
- Bearing type
- with ball bearing
- Maximum line diameter
- max. rope ø 6 mm
- Application domain
- for sailboats
- Material
- stainless steel
- Working load
400 kg
(881.8 lb)- Center diameter
34 mm
(1 in)- Weight
44 g
(2 oz)
Description
S.steel mini blocks, single block, sheave Ø 34, SWL 400 kg
Available with cam cleat (Mod. 00301/C)
Additional Information
This series offers extremely high working loads (SWL: 34x6 = 400 kg, 40x8 = 500 kg) while still compact and lightweight.
The sheave is made of resin with a double lateral ball-bearing. Cheekplates are made of perfectly polished AISI 316 stainless steel. The high quality materials guarantee a maintenance-free product. Resin sheave with double self-captive ball bearings.
