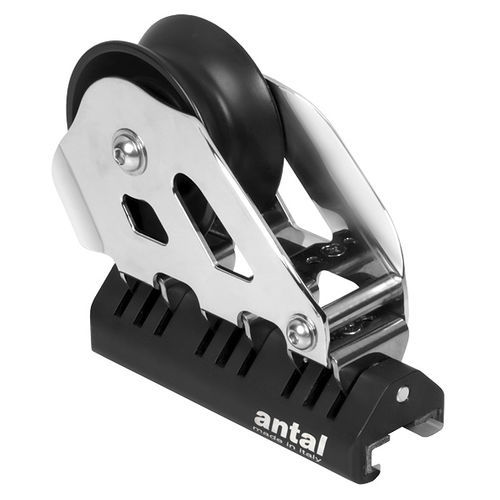

Genoa sheet car 626.492ball bearing
Add to favorites
Compare this product
Characteristics
- Applications
- genoa
- Other characteristic
- ball bearing
Description
Hard black anodized aluminum slider with low friction Nylon sliding inserts. The revolving upper structure (± 50°) is made of AISI 316 S.Steel. The resin sheave is fitted with 2 side ball bearing. AISI 316 S.Steel pin with a lock-up position. Becket for remote control line
Length (L) - 190 mm
Width (W) - 60 mm
Track dimensions - 40 x 8 mm
Ø sheave (D) - 100 mm
Weight - 2,12 kg
SWL - 4800 kg
Becket - Yes
Stop pin - Yes
H - 168 mm
