Built-in pedestal PKD series

electrical distributionwater supplyfor docks

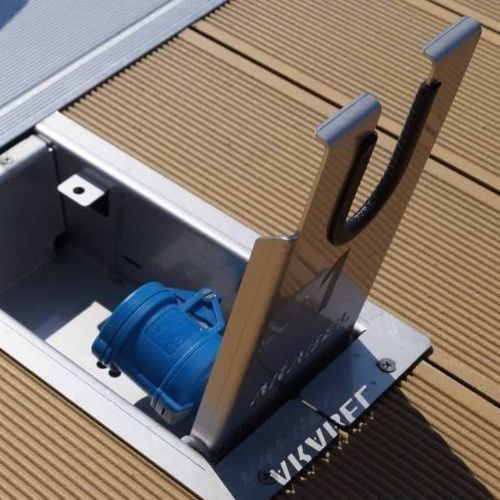

Utility wiring and water pipes are fitted under the pontoons boards. Socket and water tap point are conveniently located at the berth. Fixed pipes made of anti-legionella materials can be chosen for the water supply. Built-In socket 230V-16A. Design: With a lockable closing lid (mole lock not included) The socket uplifts for easy access while opening the closing lid. Protection grade of the socket itself: IP44 Material: Stainless steel 316. Finish: None, unpainted natural AESI 316 Conformity: NEN1010, IEC61439, IEC60634-7-709, NFC15-100. Options Flush Deck Electrical Socket: PKD-INB 6-, 10- or 16-Amp sockets 32 Amp – 3-pole sockets 32 Amp – 5-pole sockets Dimensions adapted to the prescriptions of pontoon manufacturers Dimensions: (for the 16Amp version) Minimum space needed: LxWxD = 320 x 140 x 90 mm. Cut out opening: 320 x 140 mmm Occupied pontoon deck surface: W x L: 166 x 368 mm Shore socket 230V-16A. Design: With a lockable closing lid (mole lock not included) Protection grade of the socket itself: IP44 Material: Stainless steel 304. Finish: Standard finish in powder-coated blue fine-textured RAL5010. Conformity: NEN1010, IEC61439, IEC60634-7-709, NFC15-100. Shore socket box with 2 sockets 230V-16A. Design Each socket lockable by means of a lockable slide pin (mole lock not included) Protection grade of the sockets themselves: IP44 Material: Stainless steel 304. Finish: Standard finish in powder-coated blue fine-textured RAL5010. Conformity: NEN1010, IEC61439, IEC60634-7-709, NFC15-100. Dimensions: WxHxD = 245x135x107mm
