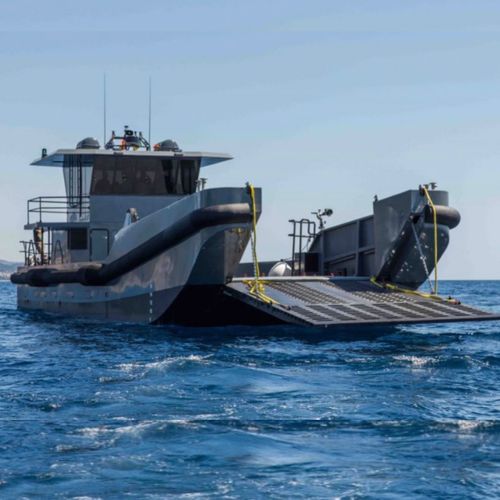

Patrol special vessel 3000 - 2500 MLD
landing craft

Patrol special vessel - 3000 - 2500 MLD - Aresa Shipyard - landing craft
Patrol special vessel - 3000 - 2500 MLD - Aresa Shipyard - landing craft
Patrol special vessel - 3000 - 2500 MLD - Aresa Shipyard - landing craft - image - 2
Patrol special vessel - 3000 - 2500 MLD - Aresa Shipyard - landing craft - image - 3
Patrol special vessel - 3000 - 2500 MLD - Aresa Shipyard - landing craft - image - 4
Patrol special vessel - 3000 - 2500 MLD - Aresa Shipyard - landing craft - image - 5
Patrol special vessel - 3000 - 2500 MLD - Aresa Shipyard - landing craft - image - 6
Patrol special vessel - 3000 - 2500 MLD - Aresa Shipyard - landing craft - image - 7
Add to favorites
Compare this product


Characteristics

Type
patrol, landing craft
Length

Min.: 26 m
(85'03" )

Max.: 30 m
(98'05" )

Width

6.4 m
(20'11" )

Draft

0.6 m, 1 m
(1'11" , 3'03" )

Displacement

Min.: 45 t
(50 us ton)

Max.: 89 t
(98 us ton)

Speed

Min.: 14 kt

Max.: 25 kt

Crew capacity

32 unit

Cabins

4 unit

Motor power

900 ch, 1,500 ch
(900 hp, 1,500 hp)

Description

The ARESA 3000 – 2500 MLD has been designed to perform all types of logistical transport missions such as the transport of troops and military vehicles. This platform can be built in naval aluminium or composite materials, or in a combination of them in order to increase its autonomy. Capable of accessing the most inaccessible areas thanks to its reduced draught and carrying out the necessary disembarkation missions by means of a gate and a hydraulic platform at the bow. It is also equipped with high capacity cranes for the loading of vehicles from the port, and with defence systems all around its perimeter, with the aim of protecting the platform at the time of disembarkation when it is most vulnerable. The propulsion system can be equipped with propellers or waterjets, depending on the client's requirements and the missions to be executed. Equipped with a steering bridge with 360 degrees visibility and with the most advanced naval electronics for this type of landing and logistic transport platforms. Fire fighting monitor of 60 m3/h (7in1). Range: 30 m Hydraulic crane of 15 tm Diesel tank for supply other vessels Anti explosion fuel tank 2 x automatic searchlight Bow ramp for RO-PAX cargo Towing hook Missions and services Vehicle transport Missions Multi charge transport Missions Fuel supply vessel Missions Surveillance Missions

VIDEO
