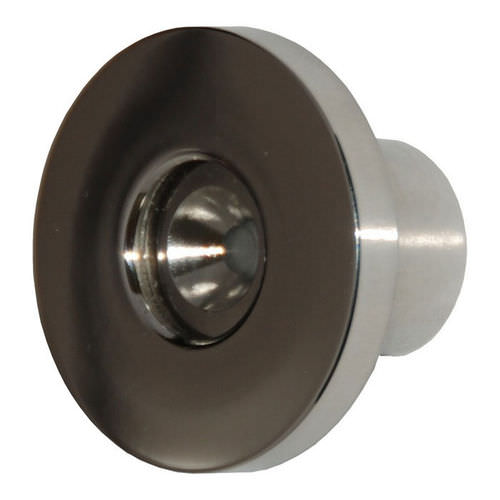

Outdoor spotlight ARCUS MRM01

interiorfor boatscabin

Innovative design Different Face Shapes Multi-Color RGB Lighting Reflecor with Holographic Diffuser Microprocessor Control DMX512 Network Control Polarity Protection Transient Protection Wide Range Power Supply Low Power Consumption Simple Installation The ARCUS series is a very innovative multi-color RGB LED light built-in waterproof stainless steel casing with different front shapes and lighting angles. It is suitable for using as interior and exterior downlight, step or staircase light. The most advanced electronic design with built-in microprocessor enables network connection and simple control of complete group of the lights. The ARCUS series is designed to light to floor under the angle of 45 degrees or straight. The main feature is that ARCUS allows changing of the color of lighting manually or automatically through the complete rainbow spectrum. All models are designed for operating at extreme temperature and voltage conditions with thermal, transient and reverse polarity protections. Technical Specifications Power supply - 12-24 Vdc, max. 32 mA/12 Vdc or 18 mA/24 Vdc Lens angle - 60° (angular) or 90° (straight) Optical window - High-grade polycarbonate glass Luminous flux - max. 9 lm Lighting color - RGB spectrum Operating temperature - -10°C – +50°C Casing - Stainless steel (SAE316L) Protection - IP 68 Dimensions - Ф40 mm x 26mm (slope front shape) Ф50 mm x 26mm (gentle front shape) Ф30 mm x 43mm (rail-mount model) Mounting hole - Ф21 mm (not for rail-mount model) Weight - 75g (slope front shape) 95g (gentle front shape) 150g (rail-mount model)
