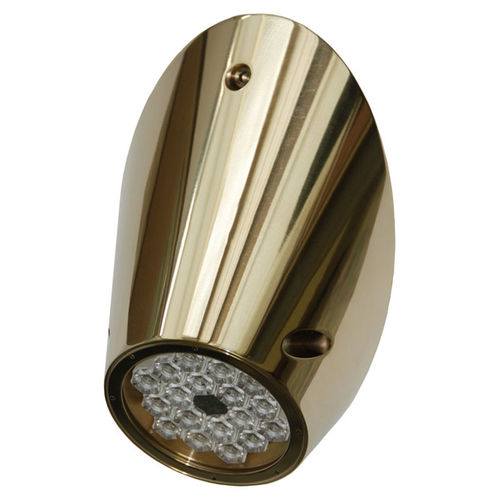

Underwater boat light CONUS MSR18240

for yachtsLEDsurface-mount

Power supply: 3 x 1A / 3 x 1.5 A Lens angle: 50° Optical window: 6mm depth tempered glass Luminous flux: max. 10.700 lm White color temperature: 6.000 K - 10.000 K Casing: Aluminum bronze (AB2) or anodized aluminum Dimensions: 217 x 142 x 106 mm Weight 6.0 kg (bronze) / 2.3 kg (aluminum) Power Supply Unit MPS061000/ MPS061500 Power Supply: 24 Vdc, max. 5 Adc Protection: IP-65 Dimensions: 200 x 160 x 55.5 mm Weight: 0.6 kg Aluminium Bronze or Anodized Aluminium Casings 18 High-Power LEDs Design White, Blue, Green, Three-Color or RGB Multi-Color Lighting Tempered Glass Optical Window High-Efficiency Lens Polarity Protection Transient Protection Thermal Protection Low Power Consumption Simple Installation Remote Control Digital Dimming (optional) DMX512 Network Control (optional) The CONUS series slope-truncated cone designed underwater lights using high-power LEDs can be installed under water line on the stern of the hull of the yacht. By the help of slope-truncated cone designed casing the CONUS can be installed on the hull to light in different directions. The CONUS is the only underwater light which can be positioned to lights to the sea ground that can be very welcome when anchoring and docking in clear and low waters. The design is registered at the Office of Harmonization for the Internal Market (OHIM). All the models are available in aluminium bronze casings (AB2) and anodized aluminium casings in different colors. The lighting is available in white, blue, green, three-color or RGB color versions. The CONUS series are available with 6 or 18 power LEDs and suitable power supply units.
