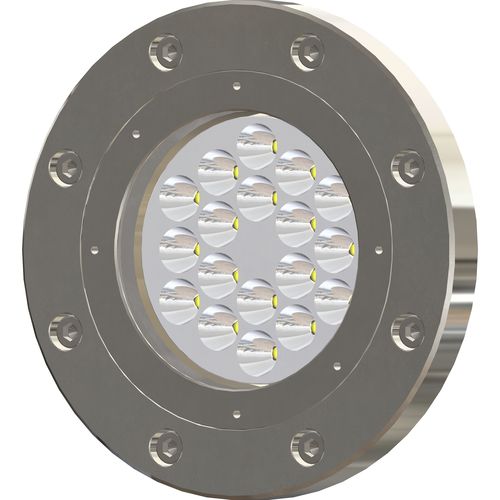

Underwater yacht light CONVEX MSR18300

LEDmulti-colorstainless steel

Power requirement 2 x 1 A (white), 3 x 1 A (RGB) Lens angle 50° Optical window 15 mm tempered glass Luminous flux 28.000 lm (white) White color temperature 6.000 - 10.000 K Operating temperature -10°C - +50°C Casing Stainless steel (SAE316L) or aluminium Protection IP 68 Dimensions Φ242 x 54 mm Weight 9.4 kg (stainless steel), 3.7kg (aluminium) Power Supply Unit MPS18100 Input voltage 120-277 Vac, 50/60Hz Consumption 240W (white), 200W (RGB) Operating temperature -10°C - +50°C Casing ABS Protection IP 56 Dimensions 380 x 300 x 120 mm Weight 4 kg (white), 5 kg (RGB) The ultra-power professional superyacht Underwater LED Lights CONVEX series with separate power supply units (drivers) are designed for installations with optional welded cofferdams and are designed with 9 or 18 high-power LED arrays and luminous flux of 14.000 lm or 28.000 lm. The white or RGBW lighting control is enabled by using optional momentary switch or DMX512 interfaces MXU01 or MXU03 with built-in ASTEL protocol. Innovative Design Stainless Steel Ultra-Thin Casing 18 High-Power LEDs Design White or RGB Multi-Color Lighting Tempered Glass Optical Window Vacuum Metalized Reflector Remote Control Digital Dimming DMX512 Network Control Polarity Protection Transient Protection Thermal Protection
