Innovative Design
Anodized Aluminium Casing
1 High-Power LED or LED Array Design
Different Face Shapes and Finishes
Warm White, Daylight White, Blue, Green, Red or Multi-Color RGBW Lighting
Reflecor with Holographic Diffuser
Microprocessor Control
Digital Dimming
DMX512 Network Control
Polarity Protection
Transient Protection
Thermal Protection
Wide Range Power Supply
Low Power Consumption
Simple Installation

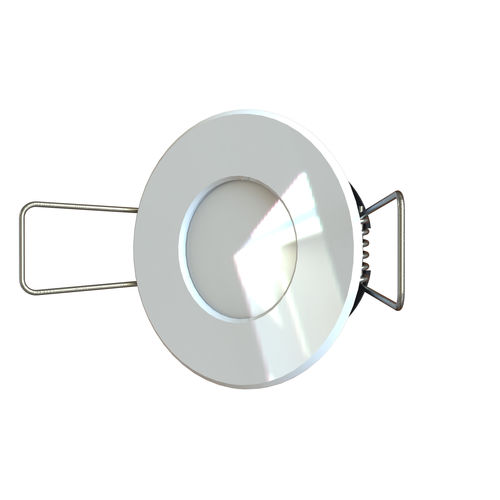

The INTENSA series of compact LED lights with electronic driver built-in waterproof anodized aluminium casing is designed by using 1, 2,3 or 6 high-power LEDs with built-in microprocessor which enables network connections and remote control with digital dimming. The built-in ASTEL protocol enables the complete lighting control by using the standard DMX512 digital communication network. Due to wide range of prestige massive face shapes made of alluminium or stainless steel the INTENSA is suitable to fit on both luxury yachts and superyachts.
Technical Specifications
Power supply 12 – 24 Vdc, max. 130 mA
Lens angle 130°
Optical window High Grade Polycarbonate Glass
Luminous flux max. 150 lm (daylight white)
White color temperature 4500K (daylight) or 3000K (warm)
Casing Black anodized aluminium
Dimensions max. Ø58 x 25 mm
Mounting hole Ø48mm x 24mm
Weight Aluminium front shape 70g
