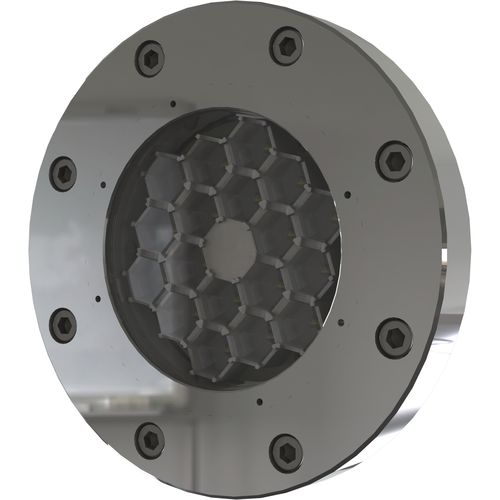

Underwater yacht light CONVEX MSR18240S
LEDthrough-hullbuilt-in

Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 2
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 3
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 4
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 5
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 6
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 7
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 8
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 9
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 10
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 11
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 12
Underwater yacht light - CONVEX MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 13
Add to favorites
Compare this product

Go to the ASTEL MARINE website for more information

Characteristics

Application domain
for yachts
Light source
LED
Mounting
through-hull, built-in
Hull material
for aluminum hulls, for steel hulls
Other characteristics
multi-color, stainless steel

Description

Power requirement 3 x 1 A / 3x1.5 A Lens angle 50° Optical window 6 mm depth tempered glass Luminous flux 10.700 lm White color temperature 6.000 - 10.000 K Operating temperature -10°C - +50°C Casing Stainless steel (SAE316L) Protection IP 68 Dimensions Ø110x125mm (MTH) • Ø140x34mm (MSR) Weight 1.9 kg (MTH) • 2.3 kg (MSR) Power Supply Unit MPS061000 / MPS061500 Input voltage 24 Vdc Consumption max. 5 Adc Operating temperature -10°C - +50°C Casing ABS Protection IP 65 Dimensions 200x160x55.5mm Weight 0.6 kg Innovative Design Stainless Steel Casing 18 Power LEDs Design White, Blue, Green, Three-Color or RGB Multi-Color Lighting Tempered Glass Optical Window High-Efficiency Lens Remote Control Digital Dimming (optional) DMX512 Network Control (optional) Polarity Protection Transient Protection Thermal Protection Wide Range Power Supply Low Power Consumption The cylinder thru-hull underwater LED lights CONVEX series with external drivers and 18 high-power LEDs are designed for installation with optional welded cofferdams.
