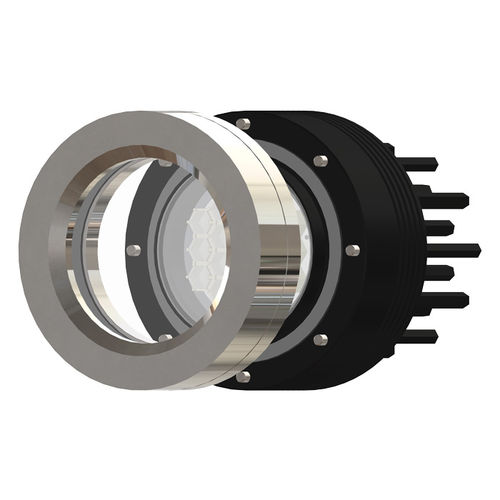

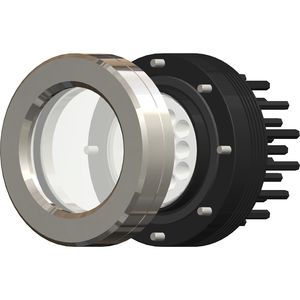

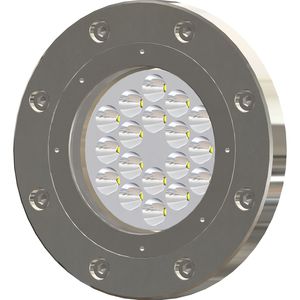

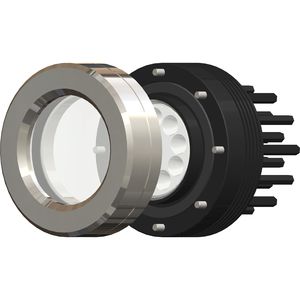

Underwater yacht light PLAQUE MSR18240S
LEDthrough-hullbuilt-in

Underwater yacht light - PLAQUE MSR18240S - ASTEL MARINE - LED / through-hull / built-in
Underwater yacht light - PLAQUE MSR18240S - ASTEL MARINE - LED / through-hull / built-in
Underwater yacht light - PLAQUE MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 2
Underwater yacht light - PLAQUE MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 3
Underwater yacht light - PLAQUE MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 4
Underwater yacht light - PLAQUE MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 5
Underwater yacht light - PLAQUE MSR18240S - ASTEL MARINE - LED / through-hull / built-in - image - 6
Add to favorites
Compare this product

Go to the ASTEL MARINE website for more information

Characteristics

Application domain
for yachts
Light source
LED
Mounting
through-hull, built-in
Hull material
for aluminum hulls, for steel hulls
Other characteristics
multi-color, stainless steel

Description

Power requirement - 3 x 1 A / 3×1.5 A Lens Angle - 50° Optical window - 6 mm depth tempered glass Luminous flux - max. 10.700 lm (white) White color temperature - 6.000K – 10.000k Operating temperature - -10°C – +50°C Casing - Aluminium Protection - IP 68 Dimensions - Ø155 x 173mm (without cofferdam) Weight - 3.6 kg (without cofferdam) Power Supply Unit MPS061000 / MPS061500 Input voltage - 24 Vdc Consumption - max. 5 Adc Operating temperature - -10°C – +50°C Casing - ABS Protection - IP 65 Dimensions - 200 x 160 x 55.5mm Weight - 0.6 kg The cylinder thru-hull underwater LED lights PLAQUE series with external drivers and 18 high-power LEDs are designed for installation with optional welded cofferdams. Innovative Design Stainless Steel Casing 18 Power LEDs Design White, Blue, Green, Three-Color or RGB Multi-Color Lighting Tempered Glass Optical Window High-Efficiency Lens Remote Control Digital Dimming (optional) DMX512 Network Control (optional) Polarity Protection Transient Protection Thermal Protection Wide Range Power Supply Low Power Consumption
