Fluxgate sensor A50 series
pitchrollmarine

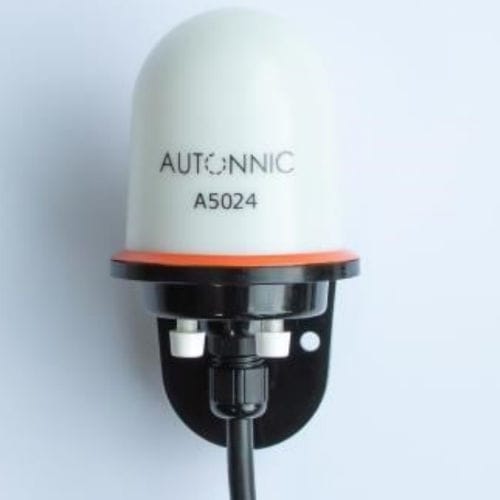

Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine
Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine
Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine - image - 2
Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine - image - 3
Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine - image - 4
Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine - image - 5
Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine - image - 6
Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine - image - 7
Fluxgate sensor - A50 series  - Autonnic Research  - pitch / roll / marine - image - 8
Add to favorites
Compare this product


Characteristics

Measured value
pitch, roll, fluxgate
Application domain
marine
Other characteristics
NMEA 2000®, NMEA 0183®, magnetic
Power source

Min.: 10 V

Max.: 30 V

Description

Water resistant to IP68 Auto Calibration by button-press Set-Zero by button-press 0183 versions are user-configurable for compatibility Pitch and Roll corrected to ±45˚ The Autonnic Compass Sensor uses fluxgate technology to provide the most accurate magnetic heading, meeting the requirements of all navigation displays and devices on board. The electronic compass unit is weather tight, allowing an optimal installation position inside or outside the hull. The compass works by taking the magnetic heading and converting it into a digital signal for use by chart plotters, Autopilots, AIS systems and other electronic devices onboard. In the A5041 gyro model, heading output is additionally derived by integrating the rate output from a MEMS yaw accelerometer or ‘gyro’ which is drift-corrected by a fluxgate magnetometer with pitch and roll compensation up to 45°. Older Simrad® Autopilots can be kept going with this functional alternative to the RFC35. The A4032 Autonnic TMC Sensor sense the magnetic angle of a boat's compass and converts it into NMEA0183 data to use for a variety of on-board purposes. Press the button to see our separate web-page.

Catalogs

A5050
A5050
2 Pages
