Ship partition wall sandwich panel AYRLITE® 2054

honeycombaluminum

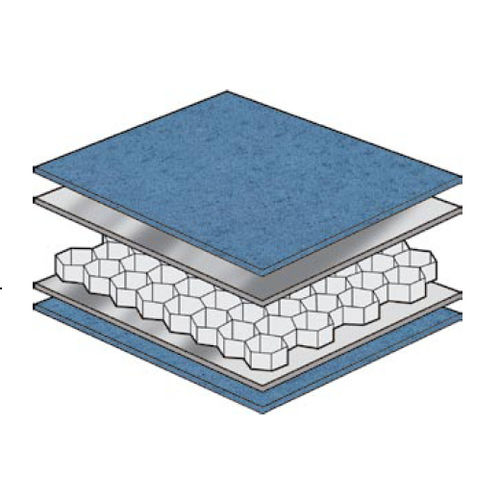

AYRLITE® 2054 is principally developed for high-performance marine vessel interior applications AYRLITE® 2054 is a fully certified aluminium honeycomb panel with decorative laminate faces reinforced with aluminium sheet. Strain-hardened hexagonal cell aluminium honeycomb has optimum mechanical properties and is able to carry shear loads at much lower weight than foam or other core types. Advanced adhesive technology has enabled AYRLITE® 2054 to achieve excellent fire performance. AYRLITE® 2054 has been principally developed for high-performance marine vessel interior applications. Properties Panels are produced with the same decorative laminate on both faces, or with a backing/lining laminate on the reverse face. Decorative faces are reinforced with Aluminium sheet. A broad range of reinforcement sheet thicknesses are available, including 0.3mm, 0.5mm, 0.8mm and 1.0mm. 0.5mm is the standard reinforcement thickness. Aluminium reinforcement sheets can be selected with different thicknesses on different faces: for example, 0.8mm for front face, 0.3mm for back face Aluminium reinforcement sheets are 5000-series alloy for maximum strength and anti-corrosion performance. Aluminium honeycomb cell size is 6.35mm. Typical room temperature properties for 0.5mm aluminium faced panels. Mechanical test procedures to AMS-STD-401. AVAILABILITY Standard Dimensions 2400mm x 1200mm Panel Thickness Made to order, minimum thickness 6mm
