Ship partition wall sandwich panel VENTURELITE® 2025aluminum honeycombaluminum
Add to favorites
Compare this product
Characteristics
- Applications
- for ship partition walls
- Core
- aluminum honeycomb
- Facing
- aluminum
- Width
1,200 mm
(47 in)- Length
2,400 mm
(94 in)- Thickness
10 mm, 20 mm, 30 mm
(0 in, 1 in, 1 in)
Description
VENTURELITE® 2025 HAS BEEN DESIGNED FOR GENERAL PURPOSE INDUSTRIAL AND MARINE APPLICATIONS WHERE A LIGHT WEIGHT TREADPLATE SURFACE IS REQUIRED

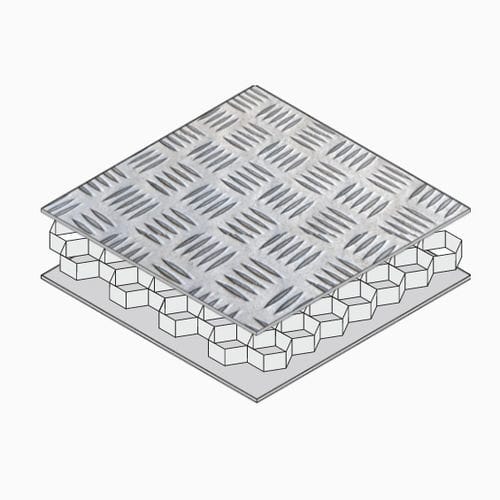

VENTURELITE® 2025 is an aluminium honeycomb panel faced with an aluminium treadplate sheet. The panel is light weight and non-combustible.
Strain-hardened hexagonal cell aluminium honeycomb has optimum mechanical properties and is able to carry shear loads at much lower weight than foams or other core types.
Mill finish aluminium face sheets are 5000 series alloy, for maximum strength and anti-corrosion performance Panels can be produced with different aluminium treadplate thicknesses including 1.6/2.7mm; 2.0/3.1mm; and 3.0/4.1mm. Aluminium back face sheets are available in a range of thicknesses including 0.3mm, 0.5mm, 0.8mm, 1.0mm. 0.5mm is the standard thickness. Aluminium honeycomb cell size is 6.35mm
