Fire protection sandwich panel FRED
aluminumstainless steel

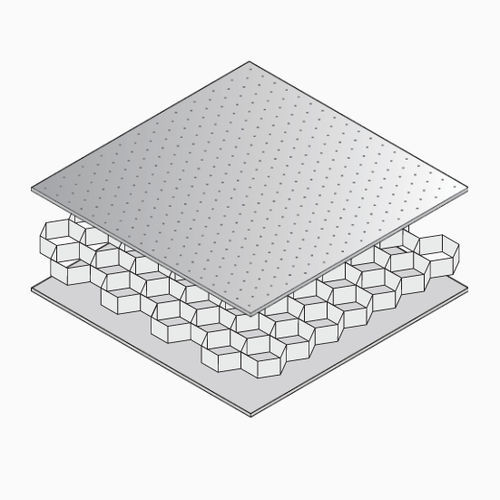

Fire protection sandwich panel - FRED - Ayres Composite Panels - aluminum / stainless steel
Fire protection sandwich panel - FRED - Ayres Composite Panels - aluminum / stainless steel
Add to favorites
Compare this product


Characteristics

Applications
for fire protection
Core
aluminum
Facing
stainless steel
Width

1,200 mm
(47 in)

Length

2,400 mm
(94 in)

Weight

5.3 kg/m²
(0 psi)

Description

The lightest and most advanced Structural Fire Protection System (SPF) for Aluminium High-Speed Craft, fully certified to IMO requirements. A 60-minute Fire Resisting Division for installation in bulkhead & deckhead applications. FReD is the lightest and most advanced structural fire protection (SFP) system available. FReD is a modular system having a clean bright look, while providing the required protection to the vessel’s aluminium structure in the event of a fire. Properties Lightweight The installed system weight of FReD is 5.3kg/m2 and therefore it is the lightest panelized SFP system in the world. This helps the shipyard to achieve desired vessel speed and maximise payload. Passenger comfort is increased by lowering the vessel’s centre of gravity, and operations may be eased in shallower waters. The vessel owner or operator can reduce CO2 emissions and improve fuel economy. Accessibility The modular system allows quick and easy access to the vessel’s structure and service. Panels can be easily removed and replaced to access services behind, due to the quick-release installation system. Modular System With a standard panel size of 2400mmL x 1200mmW, efficient area coverage is assured in addition to fast and easy installation. Durability FReD panels are robust, strong and impact resistant. Corrosion Resistant The supporting structure and cover strips are of 316 marine grade stainless steel with exposed panel surfaces being non-metallic and not subject to corrosion. Aesthetics Bright, White finish, easily washable and water resistant. Application Engine Rooms Vehicle Decks Internal modules Ceilings
