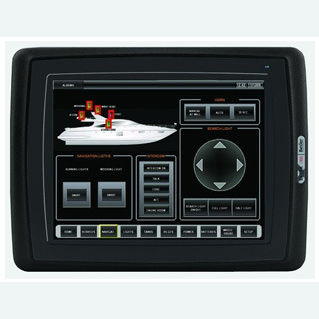

Operator terminal with PCT touch screen EXTER T100 bl

10'' graphic touch HMI 800 x 600 pixels TFT display 10" TFT-LCD touch screen Project storage 12 MB Operating temperature 0 to +50 °C Ethernet and serial Black frame General description Part number - 602220034 Life cycle status - Active Warranty - 1 year Mechanical Mechanical size - 302 x 228 x 64 mm Number of touches - 1 million finger touch operations Touch type - Resistive type Cut-out size - 265 x 206 mm Weight - 2.1 kg Housing material - Powder-coated aluminium, grey Power Input voltage - 20 - 30 VDC Power consumption (max) - 12 W Input fuse - Internal DC fuse, 3.15 AT Display Size diagonal - 10.4 inch Resolution - 800 x 600 pixels Backlight - CCFL with dimming Backlight life time - 50,000 hrs Backlight brightness - 350 cd/m2 Display type - TFT CCFL Communication serial Number of serial ports - 1 Port 9pin DSUB/1 Port 25 pin DSUB Serial port 1 - RS 232 (RTS/CTS) Serial port 2 - RS422 (RTS)/RS485 Ethernet communication Number of Ethernet ports - 1 Ethernet port 1 - 1x10/100 Base-T (shielded RJ45)
