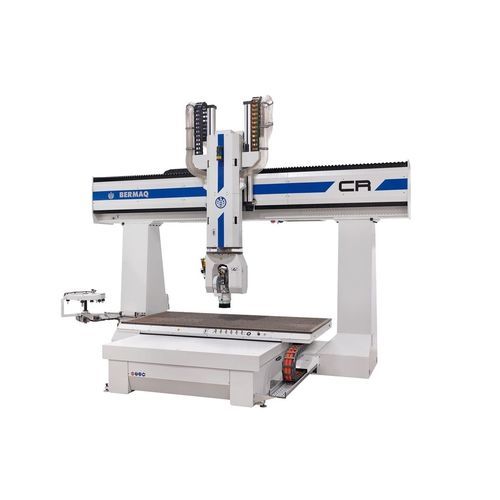

CNC machining center CR

manualautomatic3-axis

The CR milling machine has been specially designed for the machining at high speed of non-ferrous materials such as wood, aluminium, polystyrene and resin. It is a robust and precise machine ideal for the production of patterns and moulds. Its modular structure allows carrying out multiple configurations of 1 or 2 tables and 1 or 2 simultaneous heads, which makes it the perfect machine to execute high productions. Ideal for 5 axes continuous working. Technical specifications: Machine prepared to be equipped with 3 or 5 controlled axes Milling head for composites Choice of automatic or manual tool change HSK tool taper Working table with different dimensions: Working length from 2 000 to 4 000 mm (2 tables) Working width from 1 500 to 2 000 mm AZ-axis working height 1 250 mm (3 axes) Vacuum pump 145 m3/h or 250 m3/h Automatic lubrication Machine personalisation according to our customers’ needs Applications: Pattern industry Handmade works Wood modelling works Aeronautical Industry Nautical Industry Automotive industry Optional: Working area dimensions: X 2 000, 3 000 mm. Y 1 500, 2 000, 3 000, 4 000 mm Z 800, 1 250 mm Rotary axis: C +/- 200º Pendulum axis: A +/- 110º Maximum speed: X 50m/min Y 50m/min Z 20m/min Rotary axis maximum speed: C 12 600º/min Pendulum axis maximum speed: C 12 600º/min Motor power: 8kW (10,86HP) / 12kW (16HP) / 16kW (21,3HP) Motor rotation: up to 20 000 rpm Motor cooling: air, liquid Tool changer: 12 pos. HSK-F63 Numerical control: Siemens 840D
