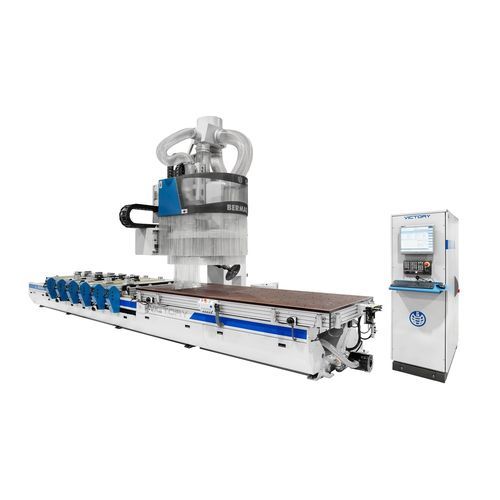

CNC machining center Victory

automatic4-axis5-axis

CNC machining centre developed in order to satisfy the most demanding customers. It is a versatile, modular and strong machine, which provides the best solutions to the wood sector. Its design covers the most part of the machining works (drilling, machining, edging, etc.). The Victory machining centre offers the possibility of adapting different sort of aggregates, horizontal motors, saws, etc. Thanks to its modular structure the machine can be easily personalised with the best solutions according to the demand of each customer. Technical specifications: Machine prepared to be equipped with 3 controlled axes Drilling heads with different possibilities Milling heads with different possibilities Choice of tool change from 12, 18 and 32 positions and HSK-F63 tool tapers C axis for aggregates (optional) Working table with different dimensions according to model Table types: Table made up of straight arms (double vacuum circuit) and independent vacuum cups Phenolic resin table Mixed table Vacuum pump: 140 m3/h or 250 m3/h Automatic lubrication Milling motor: possibility from 7,5 kW to 12 kW air-cooled motors and 16 kW liquid-cooled motor Working area dimensions (A Model): X 3 200, 4 650, 6 250 mm. Y 1 380, 1 680 mm. Z 250 mm Applications: Furniture Kitchen and bathroom furniture Manufacturer of panels Door and windows Aluminium profiles Staircases Artistic jobs Options VICTORY: Rotary axis: C 360º continuous Maximum speed: X 85 m/min Y 85 m/min Z 30 m/min Rotary axis maximum speed: C 17560º/min Drilling group: 14H + 6V+ 1S (Saw) Motor power: 7,5 kW (10HP) / 12kW (16HP) / 16kW (21,3HP) Motor rotation: up to 24 000 rpm Motor cooling: air, liquid
