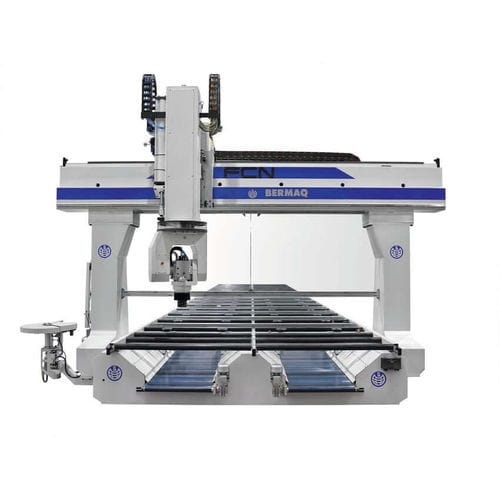

CNC machining center FCN

4-axis3-axismilling machine

Computerized Numerically Controlled machining centre (CNC) designed to satisfy the needs of the most demanding customers. It is a versatile, modular and heavy machine, which provides solutions to the wood sector. Its moving bridge structure, its dynamic high performance, modularity and power, launch this machine as the perfect solution for the machining of parts needing a high quality and precise finish. Technical specifications: Machine equipped with 3 or 4 controlled axes Air-cooled motor: 8kW / 12kW / 16kW / – 24000rpm Tool taper: ISO / HSK C axis for aggregates (optional) Working table with different dimensions: Working length from 5000 to 8000 mm (X axis) Maximum working width: 2100 mm (Y axis) Z-axis working height from 350 to 1000 mm Vacuum pump 140 m3/h or 250 m3/h Table types: Phenolic resin table 1 or 2 working areas Siemens CNC Personalized machine according to the needs of our customers{/accordion} Applications: Hardwood furniture Kitchen and bathroom furniture Manufacturers of large-size panels Doors and windows Staircases Optional: Working area dimensions: X 5000, 6500, 8000 mm Y 1500, 1700, 2100 mm Z 350, 500, 1000 mm Rotary axis maximum speed: C 17560º/min Motor power: 8kW (10,86HP) / 12kW (16HP) / 16kW (21,3HP) Motor rotation: up to 24000 rpm Motor cooling: air, liquid Tool changer: 12 pos. HSK-F63 Numerical control: Siemens 828D / 840
