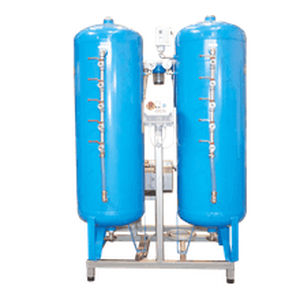

RTM vacuum system 60 m3/h DOUBLE VACUUM

for shipyards

The vacuum pump is assembled onto a steel base, combined with two vertical tanks. The vacuum pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency; the pump can be started only if requested, thus reducing energy consumption to a minimum. The first tank guarantees a maximum pump vacuum level, whereas the second tank is equipped with a vacuum reducer for the final pressure adjustment and an active carbon filter. Nominal pumping speed: 40/60/100/220/340 m3/h Ultimate pressure: 0,5 mbar serie PBOM
