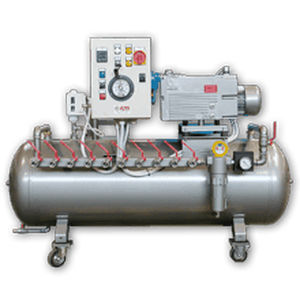

Shipyard vacuum system 40/60 m3/h

mobilefor RTM

The vacuum pump is assembled directly to the steel tank to reduce clearance requirements. The vacuum pump is equipped with a safety suction filter, non-return valve and shut-off valve. The electrical power panel and controls guarantee maximum efficiency; the pump can be started only if requested, thus reducing energy consumption to a minimum. The tank features two vacuum outputs: the first output guarantees a maximum pump vacuum level, whereas the second output is equipped with a vacuum reducer for the final pressure adjustment and an active carbon filter. In addition, the tank is equipped with casters to facilitate displacements inside the production site. Nominal pumping speed: 40/60 m3/h Ultimate pressure: 0,5 mbar serie PBOM
