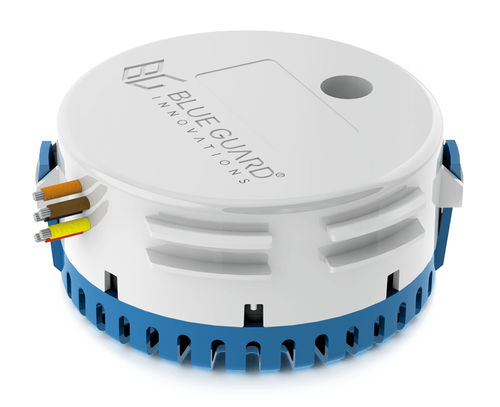

Water level sensor BG-SWA

for boatsBluetooth

The BG-SWA will activate the bilge pump when water or any liquid is detected. The BG-SWA triggers the high water alarm when water is detected continuously for 3 seconds after the first detection (factory default setting) indicating that the bilge pump is either overwhelmed with excessive rising water or not working. Based upon bilge and pump size, the user can configure the alarm activation delay from 3-10 seconds. The BG-CP is recommended to display and sound the alarm. Users can use their existing panel with equivalent functions. The alarm output of the BG-SWA is a 12 or 24 Vdc with 1 amp max drive. The BG-SWA can be tested and its status can be viewed using the BGI Config App, which can be downloaded from the App Store or Google Play. The App is used on a mobile device with Bluetooth to wirelessly connect to the BG-SWA device. The App will report the input voltage level and system temperature. It also allows changing the name of the device for easy identification and testing the device. Set the pump run time after water detection via the BGI Config App. The high water alarm timing can be configured via the BGI Config App. The configurable range is 3-10 seconds. The BG-SWA also offers programmable splash protection, which can be used in rough waters or foul weather conditions to prevent false pump activation which can result in the pump running dry. Splash protection modes includes High (2 seconds, factory default setting), Medium (3 seconds), Low (5 seconds), and OFF.
