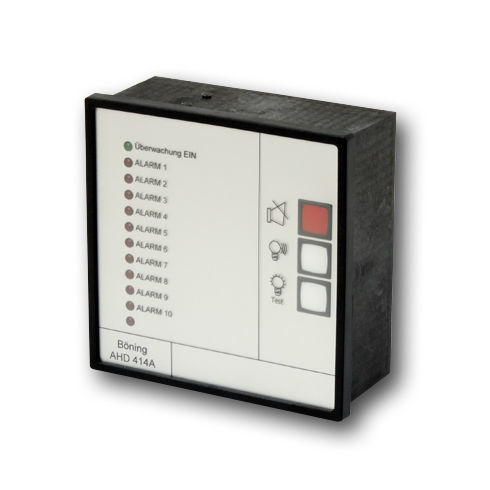

Ship alarm and safety system AHD 414 A

for yachts

AHD 414 A is a microprocessor-controlled device with 11 binary inputs for alarm and status messages and is applicable as alarm or safety system. Product Features Compact design for console, panel or switchbox installation Front dimension 144mm x 144mm Degree of protection IP 54 (front side) LED-indications for each measuring point with individual text, as well as push buttons for acknowledgement, integrated in front plate (external acknowledgement via terminal list) Input delay up to 99s 1 input for alarm blocking Override function 3 freely programmable group relays and 1 horn relay 24-pole pluggable terminal list Wire breakage monitoring for sensor and stop circuit (safety system) Data communication via serial interface
