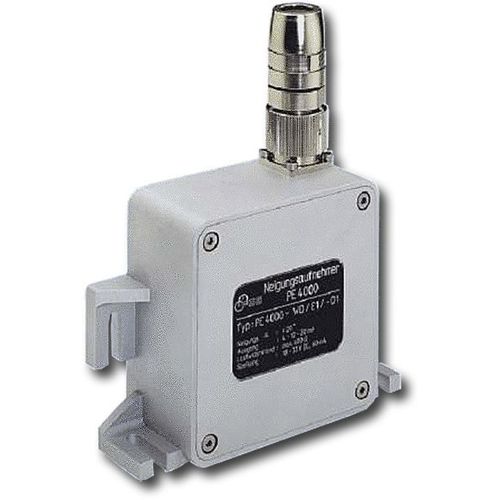

By means of inclination sensor PE4000WE, the trim or list inclination of a ship can be recorded (one sensor required per axis) in order to allow inclination depending content calculation corrections e.g. tank content measurements.
Product Features
Robust aluminium housing with exterior fixing supports
Degree of protection IP 65
Oil-damped single-axis pendulum system, inductive measuring principle
Inclination angle range max. +/- 45°
Angle accuracy < +/- 0.5 %
Power supply 18 … 33VDC
Signal output 4 … 20mA
Weight approx. 1.0 kg
Version with plug connector or cable outlet
