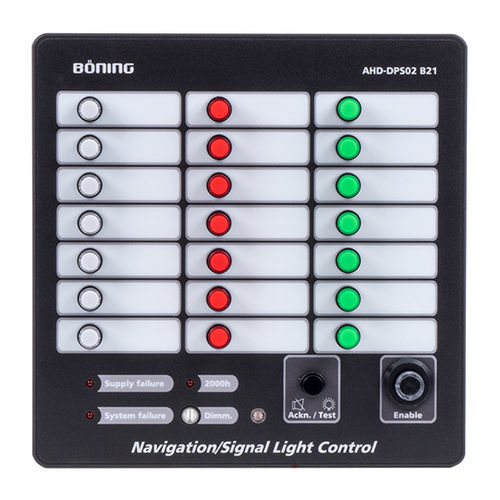

Ship monitoring and control panel AHD-DPS02 B21

for yachtsalarm

The operating panel AHD-DPS02 B21 is a microprocessor-controlled device for conventional operation and status indication of max. 21 navigation and signal lights. Product Features Compact design for installation in consoles, control panels or control cabinets Front dimension 144mm x 144mm Degree of protection IP 22 (front, with front cover IP 54) Individual operating push button for switching on and off with integrated LED for status indications of max. 21 navigation and signal lights Replaceable text field for designation of lights Additional LED-indications for power supply and system faults as well as lamp lifetime warning message (e.g. 2000 hours remaining) Automatic dimming of LED-indications, adjustable Integrated alarm buzzer Push button for acknowledgement of acoustic alarm with lamp test function Push button “Enable” for selection of operating authorization for the unit Serial interfaces for connection to basic module AHD-DPS02 G14 and one extension module AHD-DPS02 A07
