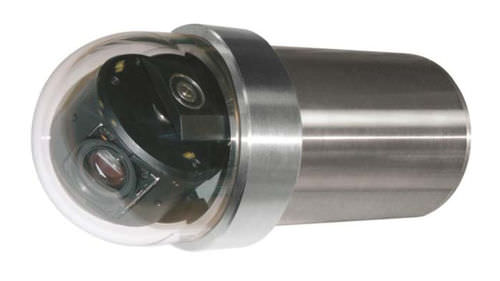

Underwater video camera DTR-100Z-ADF

ROV/AUVexplosion-proofwith zoom

Product Features Replaces Camera with Pan & Tilt Combination Explosion Proof Absence of Any External Movement Excellent Tolerance to Harsh Environment Waterproof IP68 – 5 Bars Single Umbilical Cable Link to Controller With a very compact volume (OD 120mm – L 265mm), this explosion proof TV camera (refer to certification chart on back page) offers a 10x optical zoom and tilt/rotate viewing head. The camera ideal for video surveillance in an explosive risk environment – petrochemical plants, gas storage and transportation, offshore platforms, drilling rigs or drill ships. The DTR 100Z ADF renders obsolete the traditional solution of an Ex camera, mounted on an Ex pan/tilt unit, offers the following advantages: - Weight and volume reduced by a factor of 10 - Elimination of the external cable linking the camera to the P/T unit - Absence of any external movement - Excellent tolerance to harsh environment: chemicals, climate - Waterproof IP68 -5 bars - Night and day - Pre-set positions, image rotation and overlay, protected IP access - Link to the control unit by a single umbilical cable
