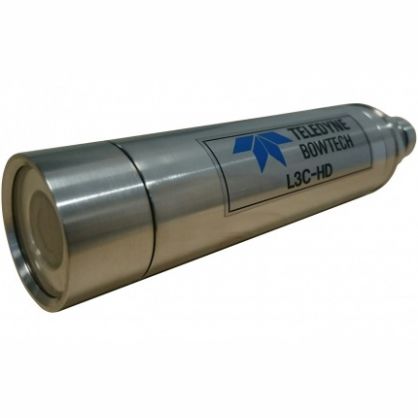

Underwater video camera L3C-HDX

ROV/AUVhigh-definitionminiature

Product Features HD-SDI outputs available in 4 formats Simultaneous SD and HDX output Titanium housing Sapphire window 1000m, 4000m and 6000m depth rating options The Teledyne Bowtech L3C-HDX is a low cost fixed focus miniature high definition camera. The digital signal from the camera is a visually lossless compressed signal that will travel up to 250 metres on a Teledyne Bowtech coax. The visually lossless compression adds zero latency to the signal. The video is viewed on a HD-SDI capable monitor after going through a small converter box. HD-SDI outputs are available in 720p 50, 720p 60, 1080i 50 and 1080i 60 formats. The camera if fitted with a fixed focus wide angle lens. This provides a 67° diagonal angle of view in water. The sapphire window is highly scratch resistant and 99.8% optically pure. The camera features built-in reverse polarity and surge protection. Output from the camera is via and impedance matched subsea connector. This ensures maximum transmission of the video signal. The camera housing is manufactured with high quality titanium, rated to either 1,000, 4,000 or 6,000 metres operating depth. The lightweight and compact L3C-HDX camera is ideally suited to tooling, diving and RVO/AUV operations.
