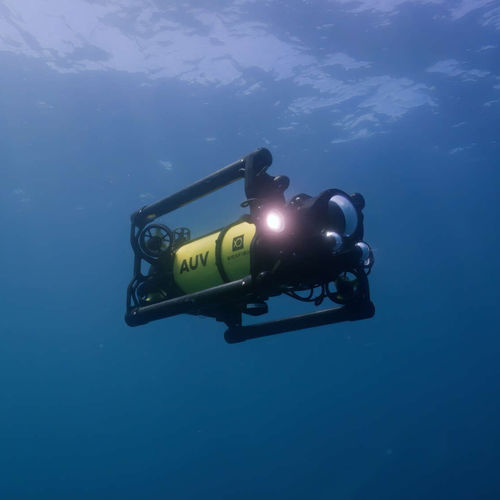

Inspection ROV Boxfish

Inspection ROV - Boxfish  - Boxfish Research
Inspection ROV - Boxfish  - Boxfish Research
Inspection ROV - Boxfish  - Boxfish Research - image - 2
Inspection ROV - Boxfish  - Boxfish Research - image - 3
Add to favorites
Compare this product


Characteristics

Type
inspection
Maximum depth

600 m
(1968'06" )

Length

730 mm
(29 in)

Width

435 mm
(17 in)

Height

351 mm
(14 in)

Weight

25 kg
(55 lb)

Battery capacity

600 Wh

Voltage

12 V, 24 V

Description

Autonomous. Customisable. Reliable. The Boxfish AUV represents our latest generation of tetherless hovering AUVs, offering six degrees of freedom operation and dynamic stabilisation. Available in 300m and 600m depth options. It’s expandable architecture support both autonomous operation with option for fully manual tethered operation. The Boxfish AUV offering a range of up to 6km operation at one charge. With the capacity for up to five free ports for connecting optional sonar and environmental sensors, the Boxfish AUV becomes a powerful scientific tool for repeatable autonomous inspection tasks. Autonomous & Tetherless Boxfish AUV side view Boxfish autonomy enables efficient navigation using waypoints based on latitude/longitude, depth, altitude, or USBL beacon relative positioning. It also supports attitude control, and integration with camera and sonar systems. Boxfish mission planning software simplifies the process of setting up transects and grid patterns, allowing for the collection of overlapping image data. The standard triple camera head on the Boxfish AUV includes stereo cameras for navigation and an exceptional large-sensor camera with matched dome optics, capturing stunning 20MP images and broadcast-quality 4K video. High CRI 17,000 lumen lighting ensures optimal image data capture in any underwater environment. Maneuverability Boxfish AUV underwater bottom view With eight 3D-vectored thrusters, the Boxfish AUV offers the unique capability of six degrees of freedom of movement. This means the vehicle can travel and orient itself in any direction, providing users with a powerful tool for capturing images from various angles and operating in currents.
